Product Overview

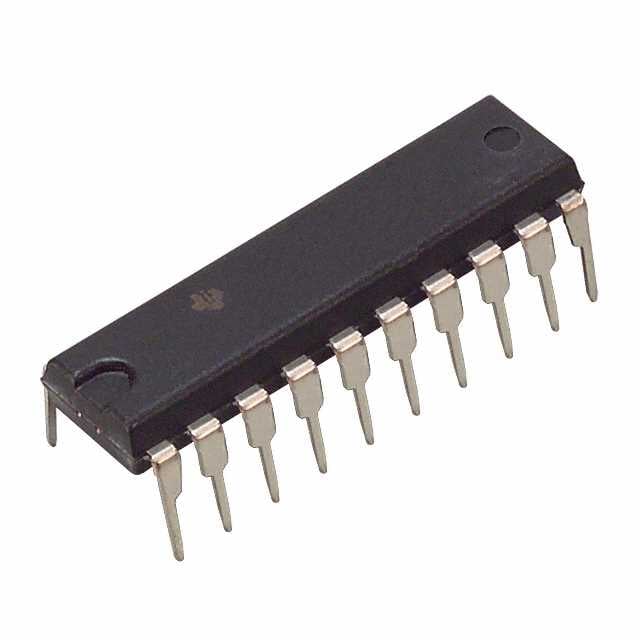

The SN74ABT374AN is an octal D-type flip-flop with 3-state outputs from Texas Instruments, designed for high-performance bus-oriented applications. It features 8-bit edge-triggered storage with a common clock (CLK) and output enable (OE) control. The device operates from a 4.5V to 5.5V supply, offering typical propagation delays of 4.6 ns and output drive capability of ±32 mA. Housed in a 20-pin PDIP package, it is ideal for buffering, register, and bus interface functions in digital systems.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 4.5V to 5.5V
Input Voltage (VI) 0V to VCC
Output Voltage (VO) 0V to VCC
High-Level Output Current (IOH) -32 mA
Low-Level Output Current (IOL) 32 mA
Propagation Delay (tpd, CLK to Q) 4.6 ns typical
Input Capacitance (Ci) 3 pF typical
Operating Temperature Range -40°C to +85°C
Package 20-PDIP

Key Features

  • 8-bit edge-triggered D-type flip-flops
  • 3-state outputs for bus-oriented applications
  • Buffered common clock and output enable
  • High drive capability: ±32 mA at 5V
  • Typical propagation delay: 4.6 ns
  • Low power consumption: ICC = 30 mA max
  • ESD protection exceeds 2000V per MIL-STD-883
  • Latch-up performance exceeds 500 mA per JESD 17

Target Applications

  • 5G base station control logic
  • Automotive dashboard display buffers
  • Industrial PLC I/O modules
  • Data communication routers and switches
  • Memory address register in embedded systems
  • FPGA configuration interface

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT374AN. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
