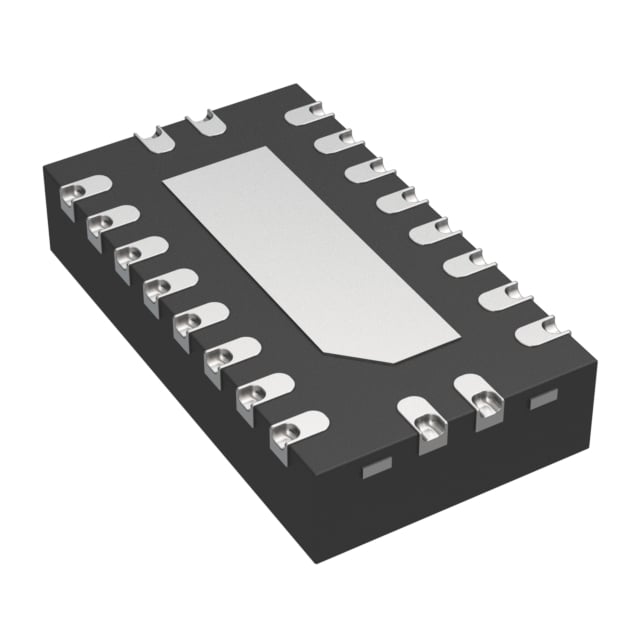

SN74AC245RKSR TI Bus Transceiver | 20-VQFN (2.5x4.5) | 8-bit, Non-Inverting

Product Overview

The SN74AC245RKSR is a high-performance octal bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. Housed in a compact 20-VQFN (2.5x4.5 mm) package, it operates from 2V to 5.5V and features non-inverting 3-state outputs. With a typical propagation delay of 6.5 ns at 5V, it is ideal for high-speed data transfer in mixed-voltage systems.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with 8-bit non-inverting data path
• Wide operating voltage range: 2V to 5.5V
• High drive capability: ±24 mA at 5V
• Low power consumption: ICC of 4 µA (max)
• 3-state outputs for bus-oriented applications
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 250 mA per JESD 78

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules (e.g., infotainment clusters)
• Industrial PLC I/O modules for signal level translation
• Networking equipment (routers, switches) for backplane communication
• Medical imaging systems (e.g., ultrasound consoles) for data transfer

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AC245RKSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
