SN74ACT00DB TI Logic Gates | Quad 2-Input NAND, 4.5V-5.5V

Product Overview

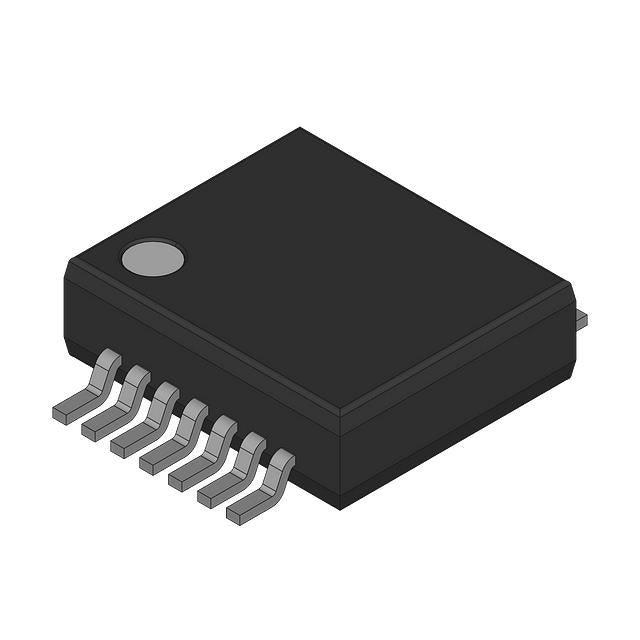

The SN74ACT00DB is a high-performance quad 2-input NAND gate from Texas Instruments, fabricated using advanced ACT (Advanced CMOS Technology) process. It operates over a wide supply voltage range of 4.5V to 5.5V, providing robust logic-level translation and high noise immunity. The device is offered in a compact SSOP (Shrink Small Outline Package) with 14 pins, ideal for space-constrained applications. With typical propagation delay of 7.5 ns and low power consumption, it is suitable for high-speed digital systems.

Detailed Technical Specifications

Key Features

• Quad 2-input NAND gate logic function
• Wide supply voltage range: 4.5V to 5.5V
• High speed: typical tpd = 7.5 ns at 5V
• Low power consumption: ICC = 4 µA (max) at 25°C
• Inputs are TTL-voltage compatible
• Outputs drive up to 24 mA
• ESD protection exceeds 2000V per MIL-STD-883
• Available in SSOP-14 package

Target Applications

• 5G base station control logic
• Automotive dashboard display controllers
• Industrial automation PLCs
• Consumer electronics like smart home hubs
• Data communication routers and switches

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT00DB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ACT00DB 是德州儀器（TI）生產的高性能四路2輸入與非門，採用先進的ACT（Advanced CMOS Technology）工藝製造。它可在4.5V至5.5V的寬電源電壓範圍內工作，提供穩健的邏輯電平轉換和高噪聲抗擾度。該器件採用緊湊的SSOP（縮小外形封裝）14引腳封裝，適合空間受限的應用。典型傳播延遲為7.5 ns，功耗低，適用於高速數字系統。

詳細技術參數

核心特性

• 四路2輸入與非門邏輯功能
• 寬電源電壓範圍：4.5V 至 5.5V
• 高速：典型 tpd = 7.5 ns（5V）
• 低功耗：ICC = 4 µA（最大值，25°C）
• 輸入與TTL電壓兼容
• 輸出驅動能力達24 mA
• ESD保護超過2000V（MIL-STD-883）
• 提供SSOP-14封裝

典型應用場景

• 5G基站控制邏輯
• 汽車儀表盤顯示控制器
• 工業自動化PLC
• 消費電子如智能家居中樞
• 數據通信路由器與交換機

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ACT00DB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
