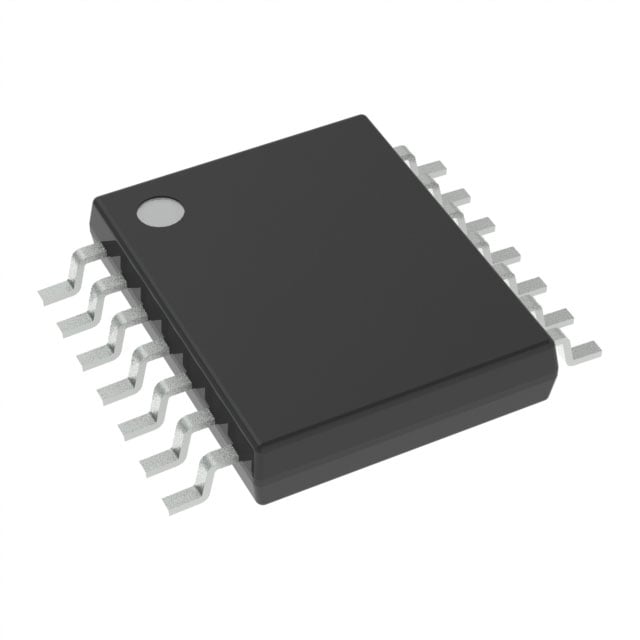

SN74ACT125PWR TI Buffer/Driver | 14-TSSOP | 4.5V-5.5V, 24mA

Product Overview

The SN74ACT125PWR is a quad bus buffer gate with 3-state outputs from Texas Instruments, designed for 4.5V to 5.5V VCC operation. It features four independent buffer gates with non-inverting outputs, each with its own output enable input (active low). The device is fabricated using advanced CMOS technology to achieve high speed and low power consumption, making it suitable for driving bus lines or buffering memory address registers. The 3-state outputs allow connection to a bus-oriented system without loading the bus when disabled. The SN74ACT125PWR is available in a 14-pin TSSOP package, offering a compact footprint for space-constrained applications.

Detailed Technical Specifications

Key Features

• Quad bus buffer gates with 3-state outputs
• Non-inverting outputs
• Separate output enable for each gate (active low)
• Wide operating voltage range: 4.5V to 5.5V
• High drive capability: ±24 mA at 5V
• Low power consumption: ICC max 40 µA
• High speed: tpd 6.5 ns max at 5V, 50pF
• Inputs are TTL-voltage compatible
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Available in 14-TSSOP package for space-saving

Target Applications

The SN74ACT125PWR is ideal for a variety of applications including:

• 5G base station control logic: buffering and driving control signals between baseband and RF modules
• Automotive dashboard displays: interfacing microcontrollers with display drivers and indicator LEDs
• Industrial automation: PLC I/O modules for signal conditioning and bus isolation
• Consumer electronics: set-top boxes, gaming consoles for data bus buffering
• Telecommunications: line cards and routers for address and data bus driving
• Medical devices: patient monitoring systems for signal distribution

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT125PWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ACT125PWR 是德州儀器推出的四路總線緩衝閘極，帶三態輸出，工作電壓範圍為 4.5V 至 5.5V。它包含四個獨立的非反相緩衝閘極，每個閘極都有自己的輸出使能輸入（低電平有效）。該器件採用先進的 CMOS 技術，實現高速和低功耗，適用於驅動總線或緩衝存儲器地址寄存器。三態輸出允許在禁用時連接至總線系統而不加載總線。SN74ACT125PWR 採用 14 引腳 TSSOP 封裝，為空間受限的應用提供緊湊的佔位面積。

詳細技術參數

核心特性

• 四路總線緩衝閘極，帶三態輸出
• 非反相輸出
• 每個閘極有獨立的輸出使能（低電平有效）
• 寬工作電壓範圍：4.5V 至 5.5V
• 高驅動能力：±24 mA (5V)
• 低功耗：ICC 最大值 40 µA
• 高速：tpd 6.5 ns 最大值 (5V, 50pF)
• 輸入與 TTL 電壓兼容
• ESD 保護超過 2000V (MIL-STD-883, Method 3015)
• 採用 14-TSSOP 封裝，節省空間

典型應用場景

SN74ACT125PWR 適用於多種應用，包括：

• 5G 基站控制邏輯：緩衝和驅動基帶與射頻模塊之間的控制信號
• 汽車儀表板顯示：連接微控制器與顯示驅動器和指示燈
• 工業自動化：PLC I/O 模塊的信號調理和總線隔離
• 消費電子：機頂盒、遊戲機的數據總線緩衝
• 電信：線路卡和路由器的地址和數據總線驅動
• 醫療設備：病人監護系統的信號分配

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ACT125PWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
