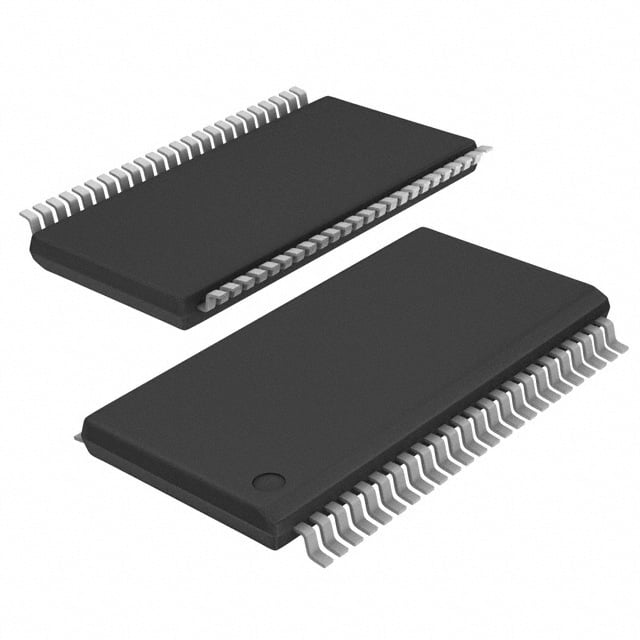

SN74AHCT16245DGVR TI Bus Transceiver | 48-TVSOP | 5V Tolerant, 16-Bit

Product Overview

The SN74AHCT16245DGVR is a 16-bit (dual 8-bit) non-inverting bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It features 5V-tolerant inputs and outputs, making it suitable for mixed-voltage systems. The device operates with a supply voltage range of 4.5V to 5.5V and is available in a compact 48-TVSOP package. It provides bidirectional data flow with direction control (DIR) and output enable (OE) pins, ensuring flexible bus management.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver with dual 8-bit channels
• 5V-tolerant inputs and outputs for mixed-voltage compatibility
• Non-inverting data paths
• Direction control (DIR) and output enable (OE) for flexible bus management
• Low power consumption: ICC max 40µA
• High drive capability: ±8mA at 5V
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100mA per JESD 78

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display systems (e.g., infotainment clusters)
• Industrial PLC (Programmable Logic Controller) I/O modules
• Telecommunications switching equipment (e.g., routers, switches)
• Medical imaging devices (e.g., ultrasound consoles)
• Data acquisition systems for sensor arrays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHCT16245DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
