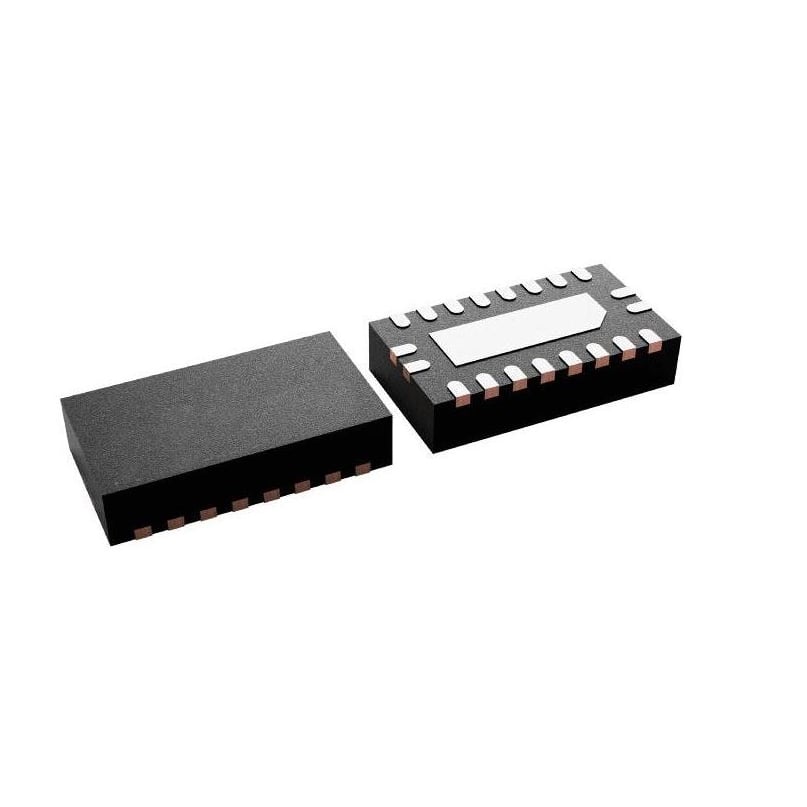

SN74AHCT245RKSR TI Bus Transceiver | 20-VQFN (2.5X4.5) | 8-Bit, Non-Inverting, 4.5V-5.5V

Product Overview

The SN74AHCT245RKSR is a high-performance octal bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It features 8-bit bidirectional data flow with non-inverting outputs, operating from a 4.5V to 5.5V supply. Housed in a compact 20-VQFN (2.5x4.5mm) package, it is ideal for space-constrained applications requiring robust signal integrity.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with non-inverting outputs
• Wide supply voltage range: 4.5V to 5.5V
• High drive capability: ±8mA at 5V
• Fast propagation delay: 8.5ns max
• Inputs are TTL-voltage compatible
• Outputs are 5V tolerant
• Low power consumption: ICC of 40µA (max)
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Available in space-saving 20-VQFN package

Target Applications

• 5G base station control boards (e.g., data bus isolation in remote radio units)
• Automotive dashboard display modules (e.g., CAN bus interface)
• Industrial PLC I/O modules (e.g., sensor data acquisition)
• Consumer electronics (e.g., smart home hubs)
• Networking equipment (e.g., router backplane communication)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHCT245RKSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
