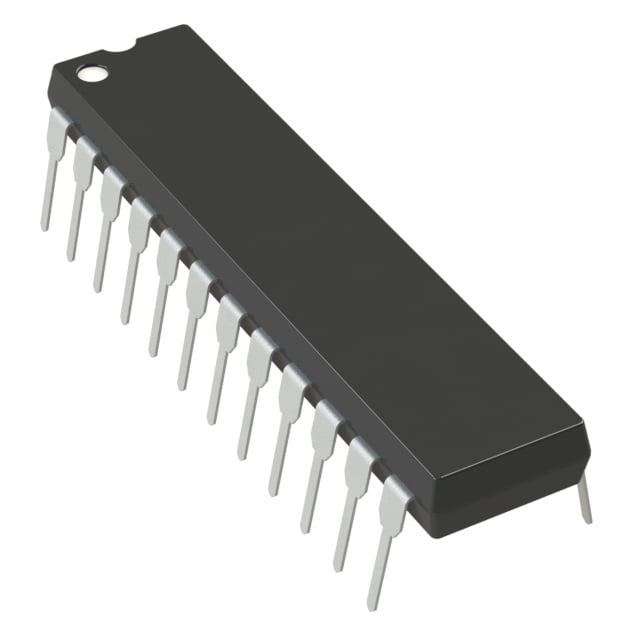

SN74ALS29863NT TI Bus Transceiver | 24-PDIP | 8-Bit, Non-Inverting

Product Overview

The SN74ALS29863NT is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. It features non-inverting outputs and is housed in a 24-pin PDIP package. The device operates with a wide supply voltage range of 4.5V to 5.5V, making it suitable for TTL logic systems. With its advanced ALS (Advanced Low-Power Schottky) technology, it offers a balance of speed and power consumption, featuring a typical propagation delay of 6 ns and a maximum quiescent current of 24 mA. The SN74ALS29863NT is ideal for applications requiring high drive capability and noise immunity, such as memory interfaces, microprocessor systems, and industrial control.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with non-inverting outputs
• Advanced Low-Power Schottky (ALS) technology for high speed and low power
• Wide supply voltage range: 4.5V to 5.5V
• High output drive capability: ±24 mA at 5V
• Typical propagation delay: 6 ns
• Input hysteresis for improved noise margin
• Glitch-free power-up/power-down protection
• Compatible with TTL and CMOS logic levels
• Industry-standard 24-pin PDIP package

Target Applications

The SN74ALS29863NT is suitable for a variety of digital systems requiring reliable data transfer between buses. Specific applications include:

• 5G base station control logic: Used for interfacing between baseband processors and RF control modules.
• Automotive dashboard displays: Facilitates communication between microcontroller and display driver ICs.
• Industrial PLC (Programmable Logic Controller) I/O modules: Provides isolation and buffering for sensor/actuator interfaces.
• Memory systems: Connects memory banks to data buses in embedded systems.
• Telecommunications equipment: Used in line cards and switching systems for data routing.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALS29863NT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
