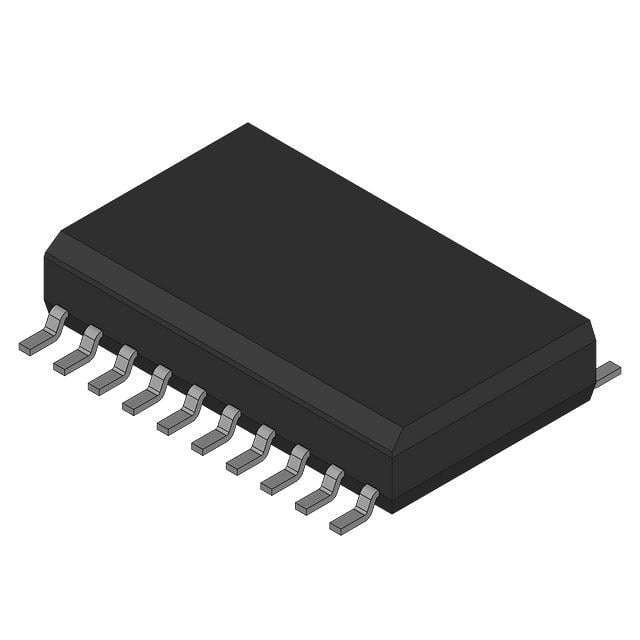

SN74ALS641ANS TI Bus Transceiver | 20-SO | 8-Bit, Non-Inverting, 3-State

Product Overview

The SN74ALS641ANS is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between data buses. It features non-inverting outputs with 3-state capability, allowing multiple outputs to share a common bus. Housed in a 20-pin SOIC package, this device operates from a single 5V supply and is characterized for operation from 0°C to 70°C. The SN74ALS641ANS is part of the advanced low-power Schottky (ALS) family, offering a balance of speed and power consumption.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with non-inverting outputs
• 3-state outputs for bus-oriented applications
• Low power consumption: 50 mW typical
• High speed: propagation delay typically 7 ns
• Input hysteresis for improved noise margin
• Outputs sink up to 24 mA and source up to -15 mA
• ESD protection exceeds 2000 V per MIL-STD-883, Method 3015
• Compatible with TTL and CMOS logic levels

Target Applications

The SN74ALS641ANS is ideal for use in a variety of digital systems requiring bidirectional data transfer. Specific applications include:

• 5G base station control boards for data bus isolation and buffering
• Automotive dashboard display systems for communication between microcontrollers and display drivers
• Industrial programmable logic controllers (PLCs) for I/O module interfacing
• Telecommunications equipment for backplane data routing
• Data storage systems for memory bus management

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALS641ANS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
