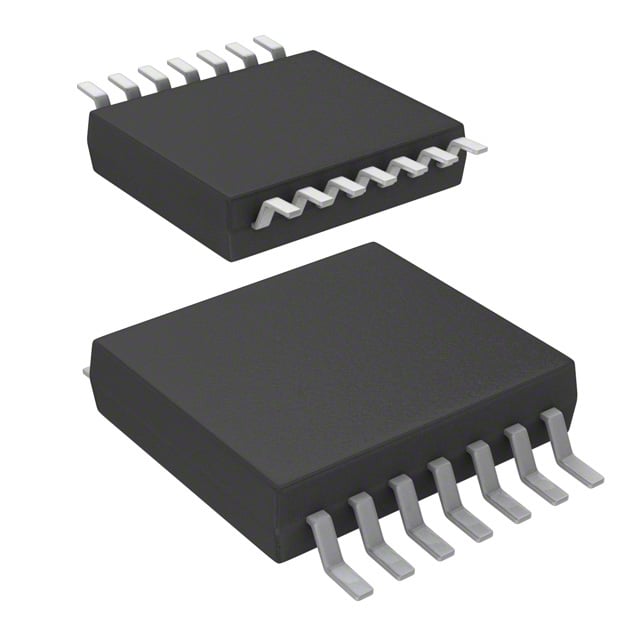

SN74ALVC125DGVR TI Buffer/Driver | 14-TVSOP | 3.3V, 4-Channel

Product Overview

The SN74ALVC125DGVR from Texas Instruments is a quadruple bus buffer gate with 3-state outputs designed for 1.65-V to 3.6-V VCC operation. It features four independent buffer gates with active-low output enables (OE). When OE is low, the output is enabled; when high, the output is in the high-impedance state. This device is ideal for driving bus lines or buffering memory address registers. It is fabricated with advanced submicron CMOS technology to achieve high speed and low power consumption.

Detailed Technical Specifications

Key Features

• Operates from 1.65 V to 3.6 V
• Inputs accept voltages up to 3.6 V
• Max tpd of 3.5 ns at 3.3 V
• ±24-mA output drive at 3.0 V
• Low power consumption, 10-μA max ICC
• 3-state outputs drive bus lines directly
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A)

Target Applications

• 5G base station control logic buffering
• Automotive dashboard display interface
• Industrial PLC I/O modules
• Server memory address register buffering
• Portable electronics level translation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVC125DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
