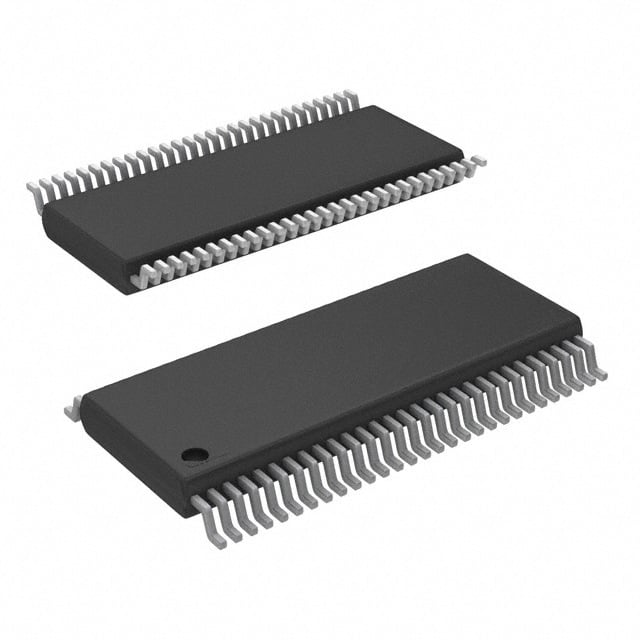

SN74ALVCH16646DGVR TI Bus Transceiver | 56-TVSOP | 16-bit, 3.3V

Product Overview

The SN74ALVCH16646DGVR from Texas Instruments is a 16-bit bus transceiver with 3-state outputs, designed for asynchronous communication between data buses. It operates from 1.65V to 3.6V, making it ideal for low-voltage applications. The device features two 8-bit back-to-back registers for temporary data storage and direction control via DIR and OE pins. Housed in a 56-pin TVSOP package, it offers high-speed performance with minimal power consumption.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver with registers
• Supports mixed-mode voltage operation (1.65V to 3.6V)
• 3-state outputs for bus isolation
• Bus-hold circuitry eliminates external pull-up resistors
• Low static power consumption (ICC = 40 µA max)
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base station control boards (e.g., data bus interfacing between FPGA and processor)
• Automotive dashboard display modules (e.g., connecting MCU to LCD driver)
• Industrial PLC I/O modules (e.g., signal buffering for sensor arrays)
• Networking equipment (e.g., router backplane data transfer)
• Portable medical devices (e.g., patient monitor data acquisition)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVCH16646DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
