SN74AUC1G08DCK3 TI Logic Gate | Single 2-Input AND | 0.8V to 2.7V, Ultra-Low Power

Product Overview

The SN74AUC1G08DCK3 is a single 2-input positive-AND gate from Texas Instruments' advanced ultra-low-voltage CMOS (AUC) family. Designed for battery-powered and portable applications, it operates over a wide supply voltage range of 0.8V to 2.7V while maintaining ultra-low static and dynamic power consumption. The device features Schmitt-trigger inputs for improved noise immunity and is available in a small SC-70 package, making it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 0.8V to 2.7V
• Ultra-low power consumption: 10 µA max ICC
• Schmitt-trigger inputs for slow or noisy signals
• High drive capability: ±9 mA at 1.8V

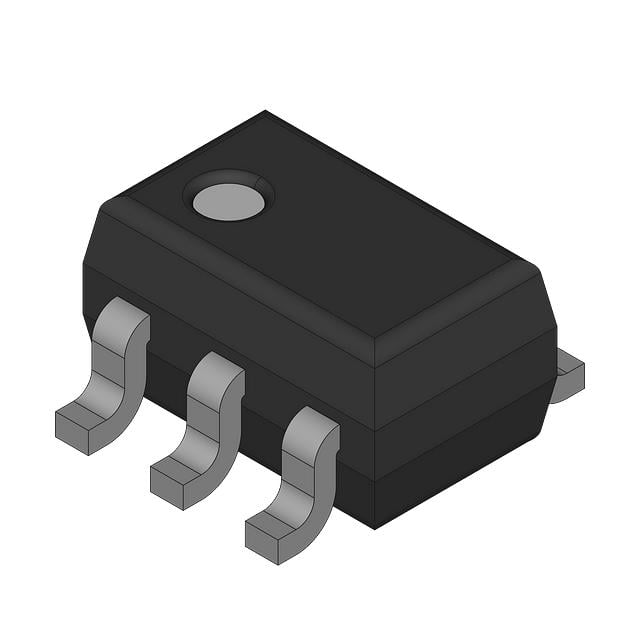

• Small SC-70 package (2mm × 2.1mm)
• ESD protection: 2kV HBM, 1kV CDM
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base station control logic: Signal conditioning in remote radio units
• Automotive dashboard: Power management and sensor interface
• Portable medical devices: Glucose meters, pulse oximeters
• IoT sensors: Battery-powered environmental monitors
• Wearable electronics: Smartwatches, fitness trackers
• Industrial handhelds: Barcode scanners, data loggers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUC1G08DCK3. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUC1G08DCK3 是德州儀器先進超低電壓 CMOS (AUC) 系列中的單路 2 輸入正與門。專為電池供電和便攜式應用設計，可在 0.8V 至 2.7V 的寬電源電壓範圍內工作，同時保持超低靜態和動態功耗。該器件具有施密特觸發輸入，可提高抗噪能力，並採用小型 SC-70 封裝，非常適合空間受限的設計。

詳細技術參數

核心特性

• 寬電源電壓範圍：0.8V 至 2.7V
• 超低功耗：最大 ICC 10 µA
• 施密特觸發輸入，適用於緩慢或噪聲信號
• 高驅動能力：±9 mA (1.8V 時)
• 小型 SC-70 封裝 (2mm × 2.1mm)
• ESD 保護：2kV HBM, 1kV CDM
• 閂鎖性能超過 100 mA (符合 JESD 78)

典型應用場景

• 5G 基站控制邏輯：遠程射頻單元中的信號調理
• 汽車儀表板：電源管理和傳感器接口
• 便攜式醫療設備：血糖儀、脈搏血氧儀
• 物聯網傳感器：電池供電的環境監測器
• 可穿戴電子產品：智能手錶、健身追蹤器
• 工業手持設備：條碼掃描器、數據記錄器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AUC1G08DCK3 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
