Product Overview

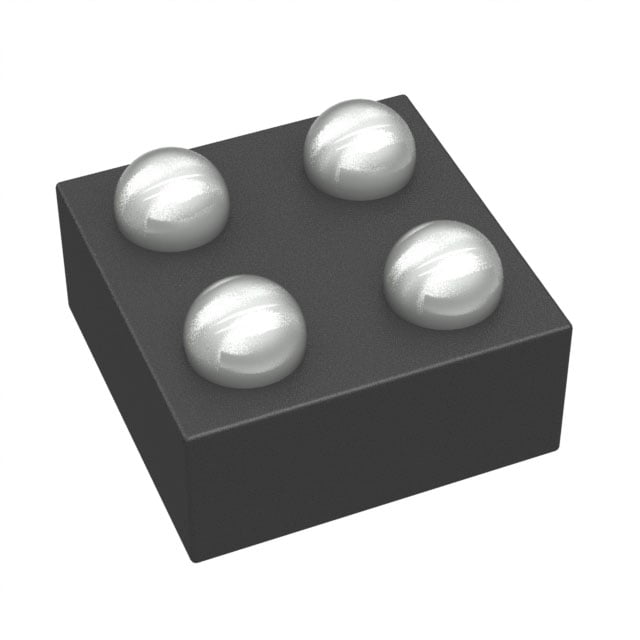

The SN74AUP1G04YFPR is a single inverter gate from Texas Instruments' advanced ultra-low-power (AUP) family. It operates over a wide supply voltage range of 0.8 V to 3.6 V, making it ideal for battery-powered and portable applications. The device is offered in a compact 4-DSBGA (0.8 mm × 0.8 mm) package, enabling high-density PCB designs. It features low static power consumption (0.9 μA max) and high drive capability (4 mA at 3.3 V). The SN74AUP1G04YFPR is specified for operation from –40°C to +85°C.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 0.8 V to 3.6 V
Maximum Quiescent Current (ICC) 0.9 μA
High-Level Output Current (IOH) –4 mA at 3.3 V
Low-Level Output Current (IOL) 4 mA at 3.3 V
Propagation Delay (tpd) 3.6 ns typ at 3.3 V
Input Capacitance (CI) 1.5 pF
Operating Temperature Range –40°C to +85°C
Package 4-DSBGA (0.8 mm × 0.8 mm)

Key Features

  • Ultra-low power consumption: 0.9 μA max ICC
  • Wide supply voltage range: 0.8 V to 3.6 V
  • High drive capability: ±4 mA at 3.3 V
  • Very low propagation delay: 3.6 ns typ at 3.3 V
  • Small package: 4-DSBGA (0.8 mm × 0.8 mm)
  • Schmitt-trigger input for noise immunity
  • ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

  • 5G base stations: Signal inversion in control logic
  • Automotive dashboard: Level shifting for display interfaces
  • Portable medical devices: Low-power logic for sensor interfaces
  • IoT edge nodes: Battery-operated sensor hubs
  • Smartphones: Power management logic
