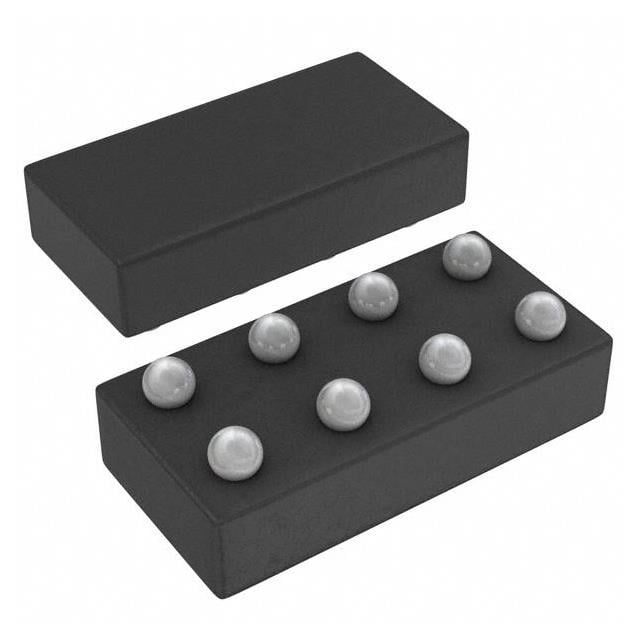

SN74AUP1G74YFPR TI Flip-Flop | 8-DSBGA | 0.8V-3.6V, 250MHz

Product Overview

The SN74AUP1G74YFPR is a single positive-edge-triggered D-type flip-flop from Texas Instruments, designed for ultra-low-power applications. It operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for battery-powered and portable devices. The device features a 1.8V tolerant input at all supply voltages, Schmitt-trigger action for noise immunity, and a maximum clock frequency of 250MHz. Housed in a compact 8-DSBGA (0.35mm pitch) package, it is optimized for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low static power consumption: 0.9 µA max
• Wide supply voltage range: 0.8V to 3.6V
• 1.8V tolerant inputs at all VCC levels
• Schmitt-trigger action on all inputs
• High speed: tpd 4.5 ns at 3.3V
• Low noise: undershoot and overshoot suppression
• ESD protection: 2kV HBM, 1kV CDM
• Pb-free, RoHS compliant

Target Applications

The SN74AUP1G74YFPR is suitable for a variety of low-power and high-speed applications, including:

• 5G base station control logic
• Automotive dashboard displays
• Portable medical devices (e.g., glucose monitors)
• IoT sensor nodes
• Wearable electronics (smartwatches, fitness trackers)
• Battery-powered handheld instruments

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP1G74YFPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUP1G74YFPR 是德州儀器（TI）推出的一款單路正邊緣觸發 D 型觸發器，專為超低功耗應用設計。它支持 0.8V 至 3.6V 的寬電源電壓範圍，非常適合電池供電和便攜式設備。該器件在所有電源電壓下均具有 1.8V 容限輸入、施密特觸發器抗噪能力，以及最高 250MHz 的時鐘頻率。採用緊湊的 8-DSBGA（0.35mm 間距）封裝，專為空間受限的設計優化。

詳細技術參數

核心特性

• 超低靜態功耗：最大 0.9 µA
• 寬電源電壓範圍：0.8V 至 3.6V
• 所有 VCC 電平下 1.8V 容限輸入
• 所有輸入均具有施密特觸發器
• 高速：3.3V 時 tpd 4.5 ns
• 低噪聲：抑制下沖和過沖
• ESD 保護：2kV HBM，1kV CDM
• 無鉛，符合 RoHS 標準

典型應用場景

SN74AUP1G74YFPR 適用於多種低功耗和高速應用，包括：

• 5G 基站控制邏輯
• 汽車儀表板顯示
• 便攜式醫療設備（如血糖監測儀）
• 物聯網傳感器節點
• 可穿戴電子設備（智能手錶、健身追蹤器）
• 電池供電的手持儀器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AUP1G74YFPR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
