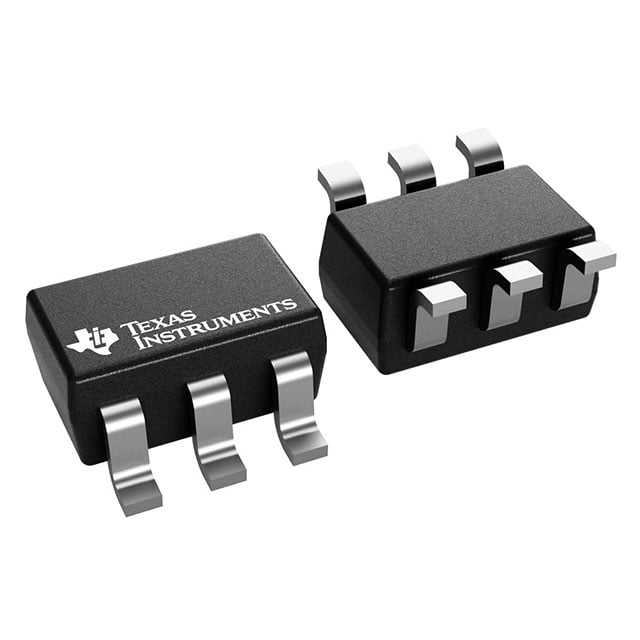

SN74AUP1T58DCKR TI Configurable Gate | SC-70-6 | 0.8-3.6V, 4mA

Product Overview

The SN74AUP1T58DCKR from Texas Instruments is a single-configurable, dual-input, single-output logic gate that can be configured as AND, OR, NAND, NOR, XOR, or XNOR. It operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for low-power and battery-powered applications. Housed in a compact SC-70-6 package, it offers high-speed performance with a typical propagation delay of 4.3ns at 3.3V.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 0.8V to 3.6V
• Low static power consumption: ICC = 0.9 µA max
• High drive capability: ±4 mA at 3.3V
• Configurable logic function: AND, OR, NAND, NOR, XOR, XNOR
• Small package: SC-70-6 (2.0mm x 1.25mm)
• ESD protection: 2kV HBM
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

The SN74AUP1T58DCKR is suitable for a variety of applications including:

• 5G base stations: logic level translation and signal conditioning
• Automotive dashboard: control logic for display and sensor interfaces
• Portable electronics: battery-powered devices requiring low power
• Industrial sensors: configurable logic for signal processing
• IoT modules: compact logic functions for smart devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP1T58DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
