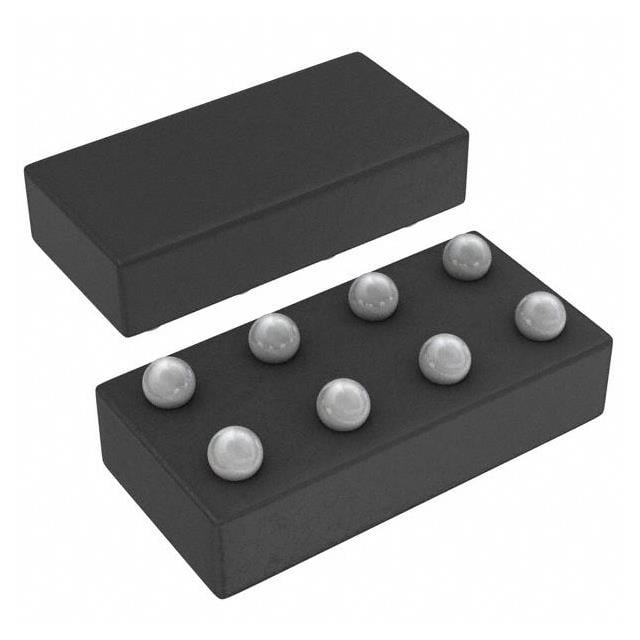

SN74AUP2G125YFPR TI Buffer/Driver | 8-DSBGA | 0.8V-3.6V, 4mA

Product Overview

The SN74AUP2G125YFPR is a dual bus buffer gate with 3-state outputs from Texas Instruments' advanced ultra-low-power (AUP) family. Designed for low-power and low-voltage applications, it operates from 0.8V to 3.6V, making it ideal for battery-powered and portable devices. The device features two independent buffer gates with 3-state outputs, providing high drive capability (up to 4mA at 3.3V) while maintaining ultra-low static power consumption (0.9μA max). Housed in a compact 8-DSBGA (0.35mm pitch) package, it is optimized for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 0.8V to 3.6V
• Ultra-low static power: 0.9μA max
• High output drive: ±4mA at 3.3V
• Low propagation delay: 3.8ns typ at 3.3V
• 3-state outputs for bus-oriented applications
• ESD protection: 2kV HBM, 1kV CDM
• Pb-free, RoHS compliant
• Compact 8-DSBGA package for space-saving

Target Applications

• 5G base station control logic: Signal buffering for FPGA/ASIC interfaces
• Automotive dashboard displays: Level translation and signal conditioning
• Portable medical devices: Low-power data buffering
• IoT sensor nodes: Interface between low-voltage sensors and microcontrollers
• Wearable electronics: Power-efficient signal routing
• Industrial automation: PLC I/O module buffering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP2G125YFPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
