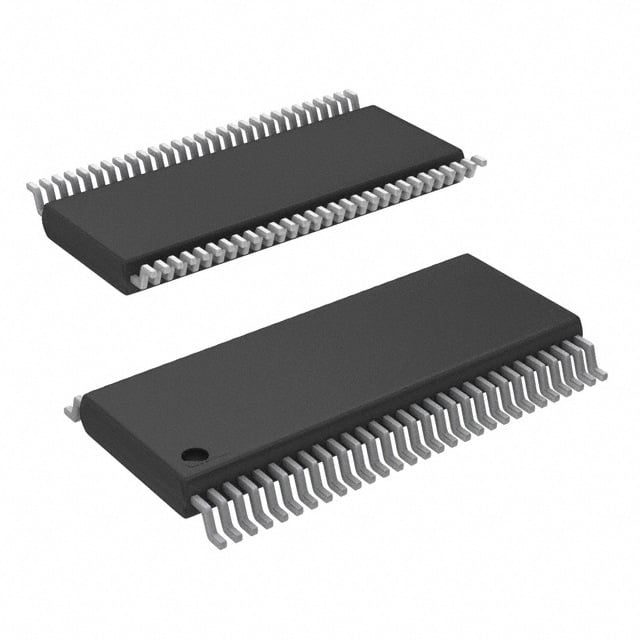

SN74AVC20T245DGVR TI Voltage Level Translator | 56-TVSOP | 20-bit, Dual Supply

Product Overview

The SN74AVC20T245DGVR is a 20-bit (dual-supply) voltage level translator from Texas Instruments, designed for bidirectional voltage translation between different voltage nodes in mixed-voltage systems. It operates with VCCA from 1.2V to 3.6V and VCCB from 1.65V to 5.5V, making it suitable for interfacing low-voltage ASICs/FPGAs with higher-voltage peripherals. The device features 20-bit bus-hold data inputs, output enable (OE) control, and is packaged in a 56-pin TVSOP (Thin Very Small Outline Package) for space-constrained applications.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation with automatic direction sensing
• Supports partial power-down mode (Ioff)
• Bus-hold on data inputs eliminates need for external pull-up/pull-down resistors
• Low power consumption: ICCA + ICCB typically 20 µA
• ESD protection exceeds JESD 22: 2000V HBM, 1000V CDM
• Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

• 5G base station: Interface between baseband processor (1.8V) and RF transceiver (3.3V)
• Automotive dashboard: Connect microcontroller (3.3V) to display driver (5V)
• Industrial PLC: Level translation between sensor interface (5V) and FPGA (1.8V)
• Consumer electronics: Smartphone application processor (1.2V) to memory card (3.3V)
• Networking equipment: Router NPU (1.8V) to PHY (2.5V)
