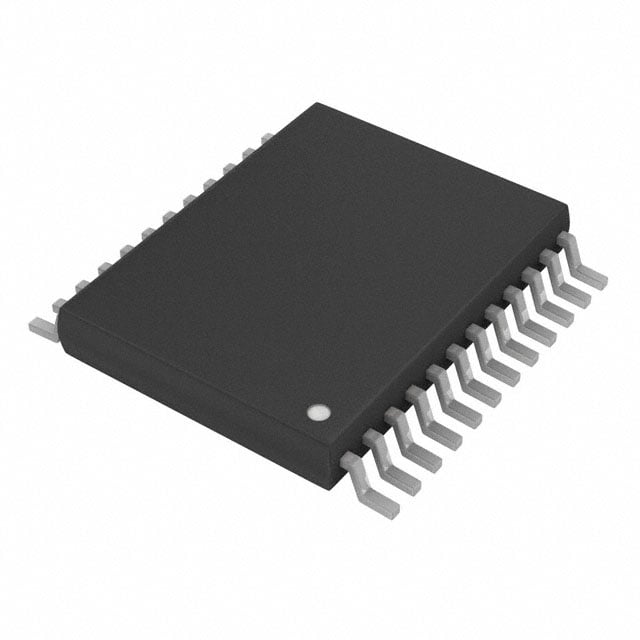

SN74CBT6800DGVR TI Bus Switch | 24-TVSOP | 10-Bit, 5V, 250MHz

Product Overview

The SN74CBT6800DGVR from Texas Instruments is a high-performance 10-bit bus switch designed for voltage translation and signal isolation in digital systems. It features a low on-state resistance of 5 Ω typical, ensuring minimal signal distortion. The device operates over a wide voltage range from 4 V to 5.5 V, making it suitable for 5V logic environments. Packaged in a compact 24-TVSOP, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Low on-state resistance (5 Ω typical) for minimal signal attenuation
• High bandwidth (250 MHz) supports high-speed data switching
• Low propagation delay (0.25 ns max) for real-time applications
• Wide supply voltage range (4 V to 5.5 V) compatible with 5V logic
• Bi-directional data flow with no direction control required
• Power-down high-impedance state on I/O ports
• ESD protection exceeds 2000 V per MIL-STD-883, Method 3015

Target Applications

• 5G base station control logic isolation
• Automotive dashboard display interface switching
• Industrial PLC I/O module signal routing
• Server motherboard hot-swap bus isolation
• Medical imaging equipment data path selection

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBT6800DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
