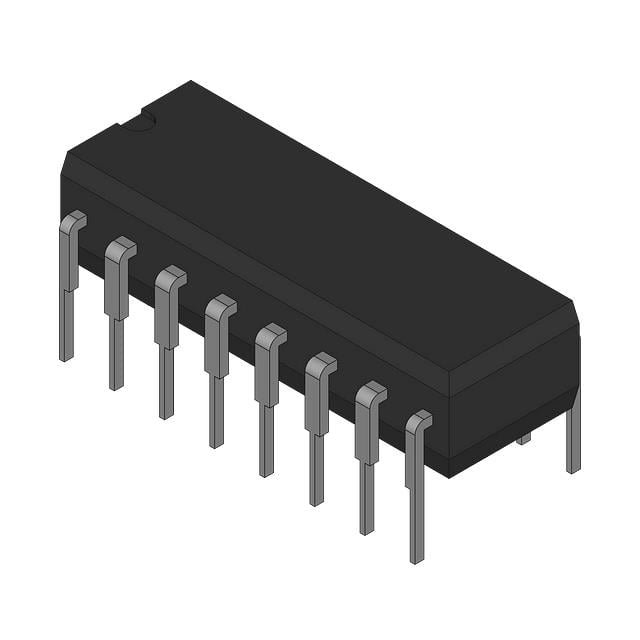

SN74F253NS TI Dual 4-Line to 1-Line Data Selector/Multiplexer | 16-SO | 4.5V-5.5V, 3-State Outputs

Product Overview

The SN74F253NS is a dual 4-line to 1-line data selector/multiplexer from Texas Instruments, featuring 3-state outputs. It is designed for high-speed digital systems, offering low power consumption and high noise immunity. The device operates from a 4.5V to 5.5V supply and is available in a 16-pin SO package (NS suffix). Each multiplexer selects one of four data sources, controlled by common select inputs (A and B). The outputs can be independently enabled or disabled via active-low output enable inputs (1G and 2G).

Detailed Technical Specifications

Key Features

• Dual 4-line to 1-line multiplexer with 3-state outputs
• Common select inputs for both multiplexers
• Independent output enable controls (active low)
• High speed: typical propagation delay of 7.5ns
• Low power consumption: ICC of 20mA (max)
• Input clamp diodes for improved noise immunity
• Compatible with TTL logic levels
• Wide operating voltage range: 4.5V to 5.5V

Target Applications

• Data routing in 5G base station control boards
• Signal selection in automotive dashboard displays
• Multiplexing in industrial PLC I/O modules
• Address decoding in memory systems
• Bus switching in telecom equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74F253NS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74F253NS 是德州儀器推出的雙路4選1數據選擇器/多路復用器，具有三態輸出。該器件專為高速數字系統設計，具有低功耗和高抗噪聲能力。工作電源電壓範圍為4.5V至5.5V，採用16引腳SO封裝（NS後綴）。每個多路復用器通過公共選擇輸入（A和B）從四個數據源中選擇一個。輸出可通過低電平有效的輸出使能輸入（1G和2G）獨立使能或禁用。

詳細技術參數

核心特性

• 雙路4選1多路復用器，帶三態輸出
• 兩個多路復用器共用選擇輸入
• 獨立的輸出使能控制（低電平有效）
• 高速：典型傳播延遲7.5ns
• 低功耗：ICC 最大值20mA
• 輸入鉗位二極管，提高抗噪聲能力
• 兼容TTL邏輯電平
• 寬工作電壓範圍：4.5V至5.5V

典型應用場景

• 5G基站控制板的數據路由
• 汽車儀表盤顯示的訊號選擇
• 工業PLC I/O模塊的多路復用
• 存儲系統的地址解碼
• 電信設備的總線切換

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74F253NS 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
