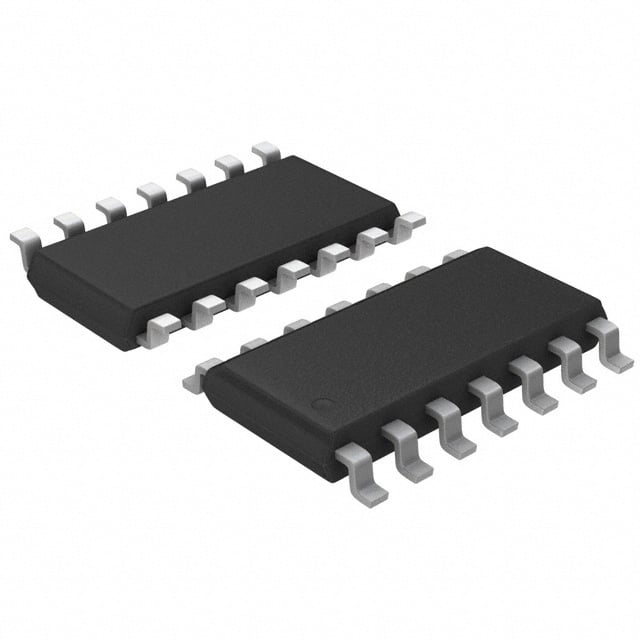

SN74F38DE4 TI Quad 2-Input NAND Buffer | 14-SOIC | 4.5V-5.5V, Open-Collector

Product Overview

The SN74F38DE4 is a high-performance quad 2-input NAND buffer with open-collector outputs from Texas Instruments. It is designed for 4.5V to 5.5V VCC operation and features Schottky-clamped transistors for high speed. The open-collector outputs allow wired-AND connections and drive capabilities up to 48mA sink current. Housed in a 14-pin SOIC package, this device is ideal for bus-oriented systems and logic-level translation.

Detailed Technical Specifications

Key Features

• Quad 2-input NAND buffer with open-collector outputs
• Wide supply voltage range: 4.5V to 5.5V
• High sink current: 48 mA per output
• Schottky-clamped for high speed
• Wired-AND capability
• Input clamp diodes
• Pb-free and RoHS compliant

Target Applications

• 5G base station control logic
• Automotive dashboard display drivers
• Industrial PLC I/O modules
• Bus line drivers in telecom equipment
• Logic-level translation for mixed-voltage systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74F38DE4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
