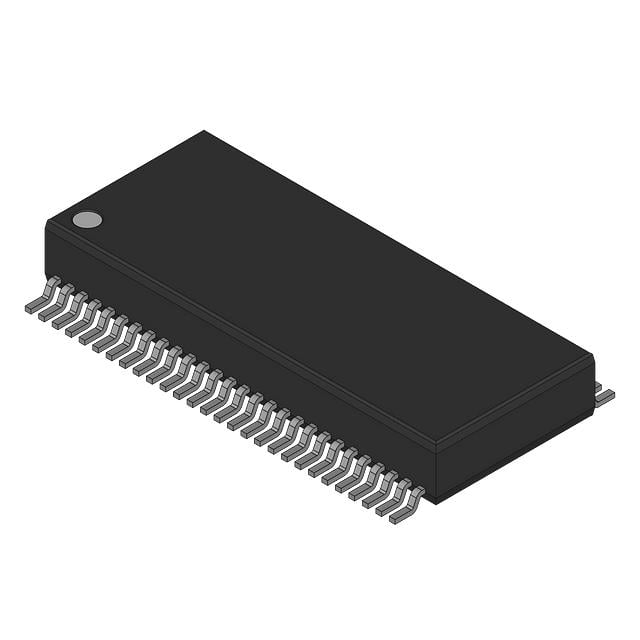

SN74GTL16612ADL TI Bus Transceiver | 20-bit | GTLP, 3.3V, 48-SSOP

Product Overview

The SN74GTL16612ADL is a 20-bit bus transceiver from Texas Instruments, designed for GTLP (Gunning Transceiver Logic Plus) to TTL/CMOS level translation. It operates at 3.3V VCC and features a 48-pin SSOP package. This device provides bidirectional voltage translation between GTLP and LVTTL logic levels, making it ideal for high-speed backplane and memory interface applications.

Detailed Technical Specifications

Key Features

• 20-bit bidirectional bus transceiver with GTLP to TTL/CMOS translation
• Supports mixed-mode voltage operation: 3.3V VCC and 1.5V VREF
• High drive capability: ±24 mA at TTL outputs
• Low propagation delay: 4.5 ns max
• Power-up 3-state outputs to prevent bus contention
• Flow-through pinout for easy PCB layout
• ESD protection exceeds JESD 22

Target Applications

• 5G base station backplane interfaces
• Automotive dashboard display controllers
• High-speed memory modules (DDR, SRAM)
• Telecommunications switching equipment
• Industrial control systems
