SN74GTLP21395GQNR TI Bus Switch | 20-BGAMICROSTARJUNIOR（4X3） | 2-Bit, 2-Port, GTLP

Product Overview

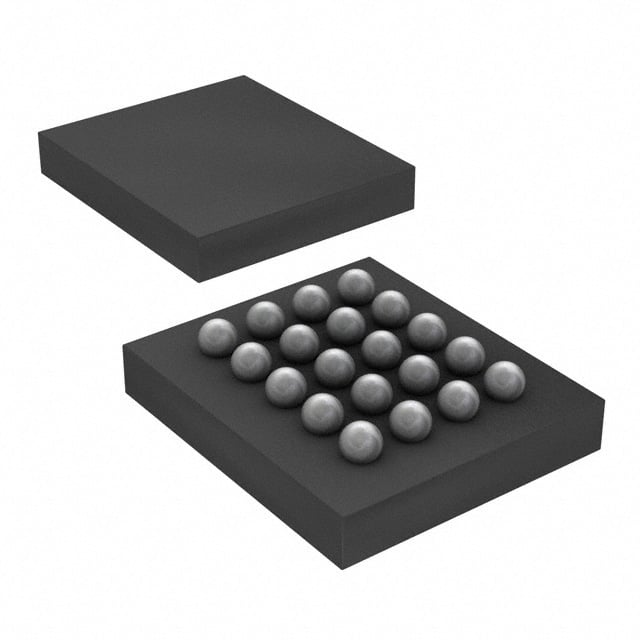

The SN74GTLP21395GQNR is a high-performance 2-bit, 2-port bus switch from Texas Instruments, designed for GTLP (Gunning Transceiver Logic Plus) applications. It features a 20-ball BGA MICROSTAR JUNIOR package (4x3 mm) and operates with a wide supply voltage range of 3.0V to 3.6V. This device provides low on-state resistance and minimal propagation delay, making it ideal for high-speed signal routing and voltage translation in advanced digital systems.

Detailed Technical Specifications

Key Features

• Low on-state resistance (5Ω typical) for minimal signal distortion
• Ultra-low propagation delay (0.25ns max) for high-speed applications
• Wide supply voltage range (3.0V to 3.6V) compatible with GTLP and LVTTL levels
• Bidirectional data flow with no direction control required
• Power-down high-impedance state on all ports
• ESD protection exceeds 2000V HBM
• Small footprint 20-ball BGA package (4x3 mm) for space-constrained designs

Target Applications

• 5G base station backplane signal routing
• Automotive dashboard display interfaces
• High-speed data acquisition systems
• Server and networking equipment (e.g., switch fabric)
• Industrial control and automation (e.g., PLC modules)
• Test and measurement instruments (e.g., oscilloscope front-end)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74GTLP21395GQNR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
