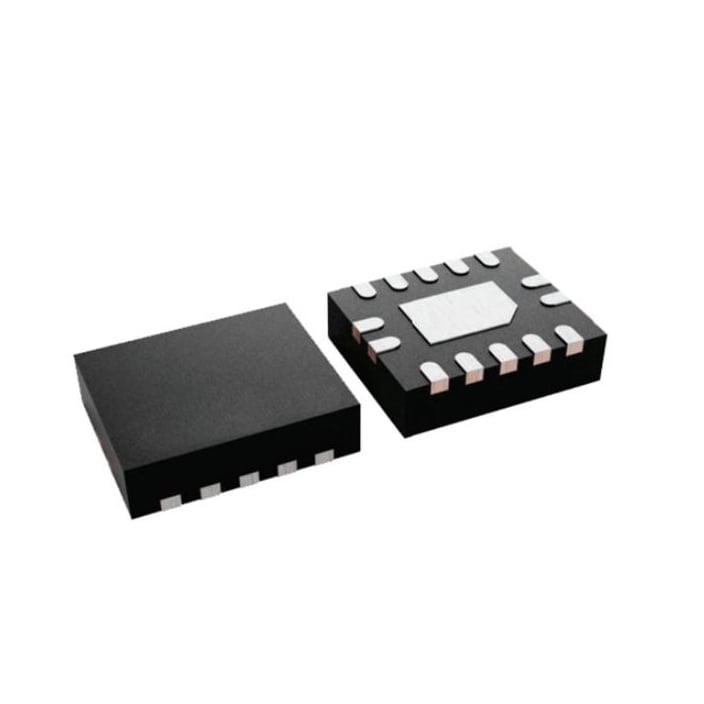

SN74HCS14BQAR TI Schmitt-Trigger Inverter | 14-WQFN (3x2.5) | 6 Channels, 2V-6V

Product Overview

The SN74HCS14BQAR from Texas Instruments is a hex Schmitt-trigger inverter with open-drain outputs, designed for general-purpose logic applications. It features six independent inverters with Schmitt-trigger inputs, providing hysteresis for noise immunity and slow input signal conditioning. The device operates over a wide supply voltage range of 2V to 6V, making it suitable for battery-powered and industrial systems. Housed in a compact 14-WQFN (3x2.5mm) package, it offers space-saving benefits for dense PCB layouts.

Detailed Technical Specifications

Key Features

• Schmitt-trigger inputs for noise immunity and slow edge detection
• Wide supply voltage range: 2V to 6V
• Open-drain outputs for wired-OR and level translation
• Low power consumption: ICC = 2µA (max) at 25°C
• High drive capability: ±4mA at 5V
• ESD protection: 2kV HBM, 1kV CDM
• RoHS compliant and lead-free

Target Applications

• 5G base station control logic: Signal conditioning for reset and enable signals
• Automotive dashboard: Switch debouncing and sensor interface
• Industrial automation: PLC input modules and motor control
• Consumer electronics: Smart home hubs and IoT devices
• Medical devices: Patient monitoring system logic

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74HCS14BQAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
