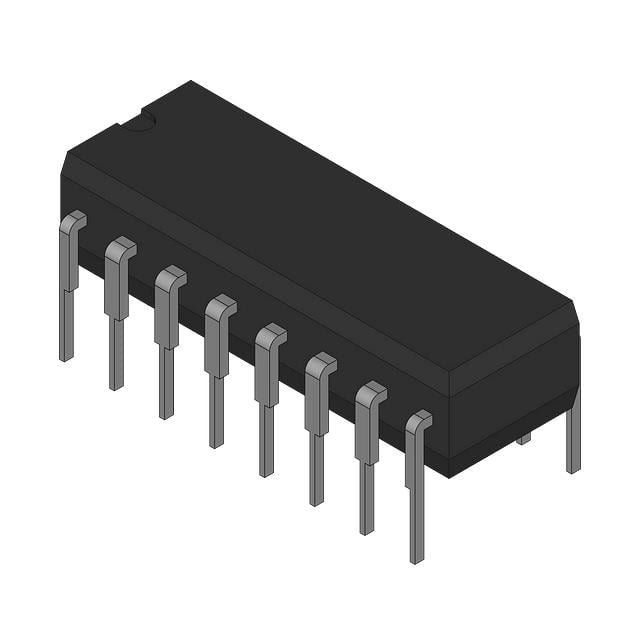

SN74LS157NS TI Quad 2-Input Multiplexer | 16-SO | 4.75V-5.25V, 8mA Output

Product Overview

The SN74LS157NS is a high-speed quad 2-input multiplexer from Texas Instruments, designed to select one of two 4-bit data sources under control of a common Select input. It features a strobe (enable) input that forces all outputs low when high. The device is fabricated using advanced Schottky barrier diode technology for enhanced speed and power efficiency. Housed in a 16-pin SOIC package, it is ideal for space-constrained applications requiring reliable data routing.

Detailed Technical Specifications

Key Features

• Quad 2-input multiplexer with common select and strobe
• Schottky-clamped transistors for high speed
• Low power consumption: 45 mW typical
• Wide operating voltage range: 4.75V to 5.25V
• High fan-out: 10 LS loads
• Compatible with TTL logic levels
• Industry-standard 16-SO package for easy integration

Target Applications

• Data routing in 5G base station control boards
• Signal selection in automotive dashboard displays
• Multiplexing in industrial PLCs
• Address decoding in memory systems
• Function selection in test equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS157NS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
