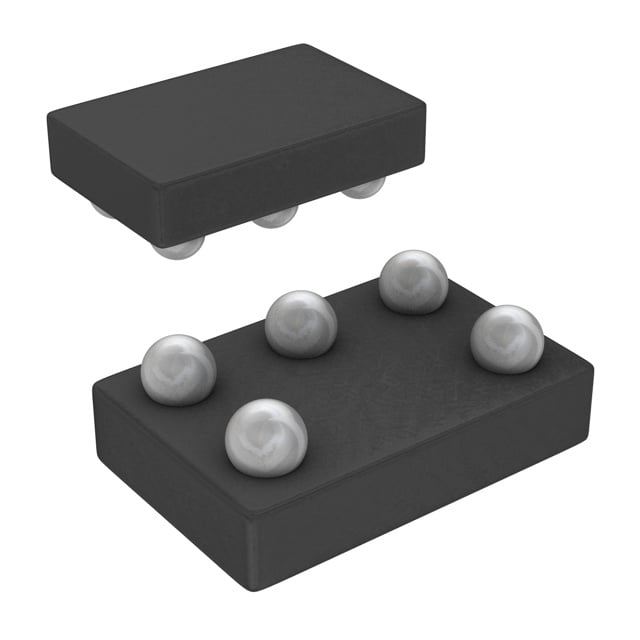

SN74LVC1G00YZAR TI Single 2-Input NAND Gate | 5-DSBGA (1.4X0.9) | 1.65V-5.5V, 5ns

Product Overview

The SN74LVC1G00YZAR is a single 2-input NAND gate from Texas Instruments, designed for low-voltage, high-speed logic operations. Housed in a compact 5-DSBGA (1.4mm x 0.9mm) package, it offers excellent performance for space-constrained applications. Operating from 1.65V to 5.5V, it supports a wide range of supply voltages, making it suitable for battery-powered and industrial systems. The device features a typical propagation delay of 5ns at 3.3V, ensuring fast signal processing.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 5.5V
• High speed: tpd = 5ns at 3.3V
• Low power consumption: 10µA max ICC
• ±24mA output drive at 3.3V
• Inputs accept voltages up to 5.5V
• ESD protection: 2kV HBM, 1kV CDM
• RoHS compliant and lead-free

Target Applications

The SN74LVC1G00YZAR is ideal for a variety of applications including:

• 5G base station control logic
• Automotive dashboard displays
• Portable and battery-powered devices
• Industrial sensors and actuators
• Signal gating and conditioning
• Level translation in mixed-voltage systems
