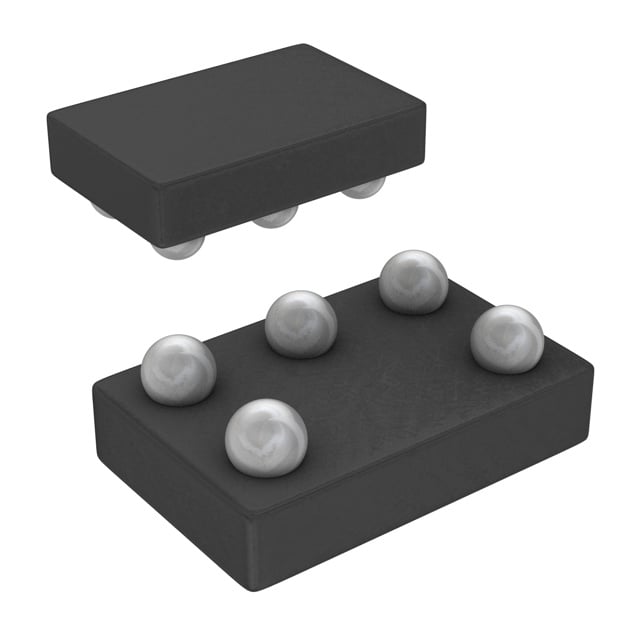

SN74LVC1G02YZAR TI Single 2-Input NOR Gate | 5-DSBGA (1.4X0.9) | 1.65V-5.5V, 5.2ns

Product Overview

The SN74LVC1G02YZAR is a single 2-input positive-NOR gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device performs the Boolean function Y = A + B in positive logic. It is fabricated using advanced LVC technology, offering low power consumption and high speed. The package is a 5-pin DSBGA (1.4 mm × 0.9 mm), ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Single 2-input NOR gate in ultra-small 5-DSBGA package (1.4 mm × 0.9 mm)
• Wide supply voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5.2 ns (typ) at 3.3 V
• Low power consumption: 10 µA max ICC
• ±32 mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• Supports partial power-down mode (Ioff)
• ESD protection exceeds JESD 22: 2000-V HBM, 1000-V CDM
• Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

• 5G base station control logic
• Automotive dashboard display interface
• Portable and battery-powered devices
• Signal gating and logic inversion in IoT modules
• Industrial sensor signal conditioning
• Consumer electronics like smart speakers and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G02YZAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
