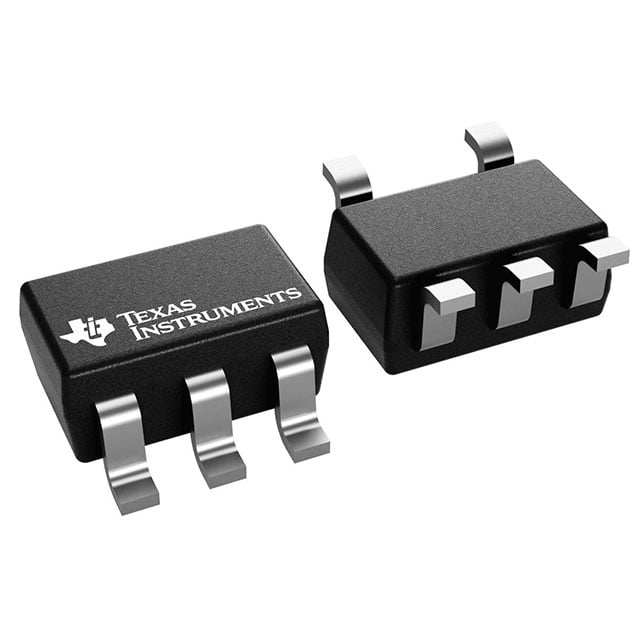

SN74LVC1G08MDCKREP TI Single 2-Input AND Gate | SC-70-5 | 1.65V-5.5V, 24mA

Product Overview

The SN74LVC1G08MDCKREP is a single 2-input positive-AND gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device is part of the LVC family and is offered in a small SC-70-5 package, making it ideal for space-constrained applications. The SN74LVC1G08MDCKREP performs the Boolean function Y = A • B in positive logic. It features low power consumption, high noise immunity, and can drive up to 24 mA at the output. This product is specified for the extended industrial temperature range of -55°C to 125°C and is qualified for defense and aerospace applications (QML certified).

Detailed Technical Specifications

Key Features

• Single 2-input AND gate with Schmitt-trigger inputs for slow or noisy input signals
• Wide operating voltage range: 1.65 V to 5.5 V
• High drive capability: ±24 mA at 3.3 V
• Low static power consumption: 10 µA maximum
• ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A)
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• Supports partial-power-down mode (Ioff circuitry)
• QML certified for high-reliability applications

Target Applications

The SN74LVC1G08MDCKREP is suitable for a wide range of applications requiring reliable logic gating in harsh environments. Specific examples include:

• 5G base station control logic for signal routing and enable functions
• Automotive dashboard display interfaces for sensor data processing
• Industrial automation PLC input/output modules
• Avionics systems for flight control and navigation
• Medical devices such as portable diagnostic equipment
• Portable battery-powered devices due to low power consumption

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G08MDCKREP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
