SN74LVC1G32DRY2 TI OR Gate | 6-SON (1.45×1) | 1.65V-5.5V, 5ns

Product Overview

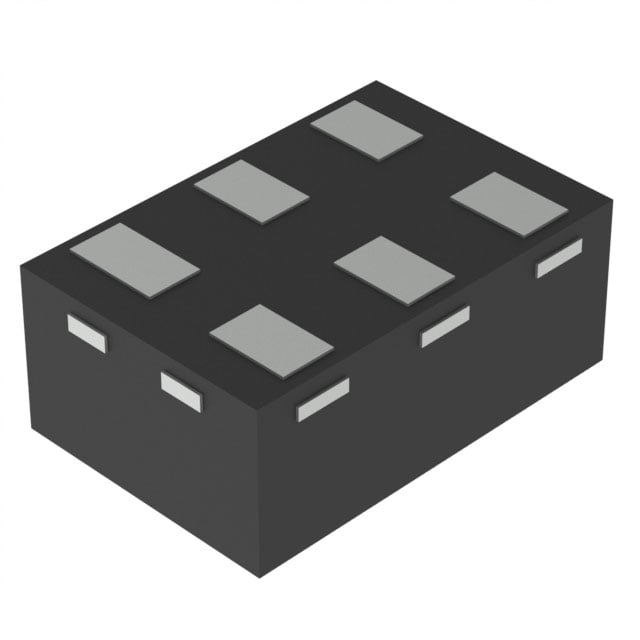

The SN74LVC1G32DRY2 is a single 2-input positive-OR gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device is fabricated using advanced LVC technology, offering high speed and low power consumption. The SN74LVC1G32DRY2 is housed in a compact 6-SON (1.45×1 mm) package, making it ideal for space-constrained applications. It provides a balanced propagation delay of typically 5 ns and supports partial-power-down mode (Ioff) to prevent backflow current when the device is powered down.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5 ns typical at 3.3 V
• Low power consumption: 10 µA max ICC
• Partial-power-down mode (Ioff) protects against backflow current
• Inputs accept voltages up to 5.5 V regardless of VCC
• ESD protection exceeds JESD 22: 2000-V HBM, 1000-V CDM
• Available in ultra-small 6-SON (1.45×1 mm) package

Target Applications

The SN74LVC1G32DRY2 is suitable for a wide range of applications, including:

• 5G base stations: signal conditioning and logic gating in control boards
• Automotive dashboard: indicator logic and sensor interface
• Portable electronics: power management and user input logic
• Industrial automation: PLC I/O modules and sensor processing
• Medical devices: patient monitoring and diagnostic equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G32DRY2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
