SN74LVC1G57DRYR TI Configurable Logic Gate | 6-SON(1.45x1) | 1.65-5.5V, 150Mbps

Product Overview

The SN74LVC1G57DRYR from Texas Instruments is a single configurable multiple-function gate that operates from 1.65 V to 5.5 V. It can be configured to perform any of the following logic functions: AND, OR, NAND, NOR, XOR, XNOR, inverter, and buffer. The device is designed for low-voltage applications and features Schmitt-trigger inputs for slow or noisy input signals. Housed in a compact 6-pin SON package (1.45 mm x 1.0 mm), it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• Configurable logic function via input pins
• Schmitt-trigger inputs for noise immunity
• High output drive: ±24 mA at 3.3 V
• Low propagation delay: 4.1 ns typical at 3.3 V

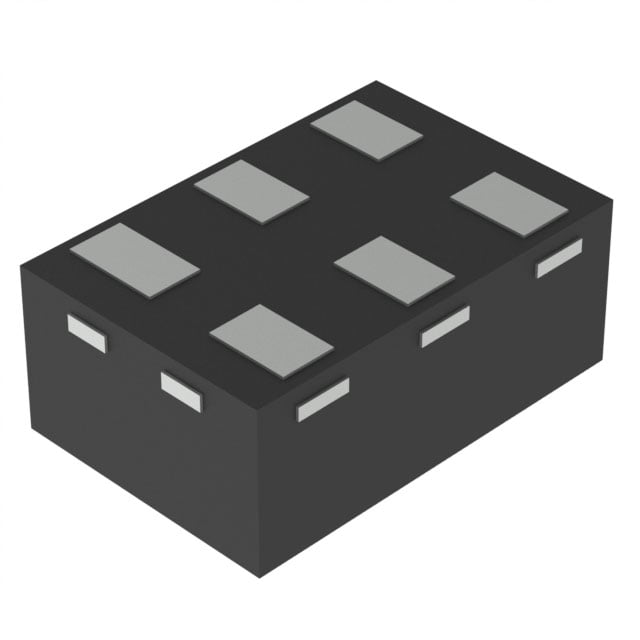

• Ultra-small package: 6-SON (1.45 mm × 1.0 mm)
• ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

• 5G base station control logic
• Automotive dashboard displays
• Portable and battery-powered devices
• Signal conditioning and level translation
• General-purpose logic in IoT modules
