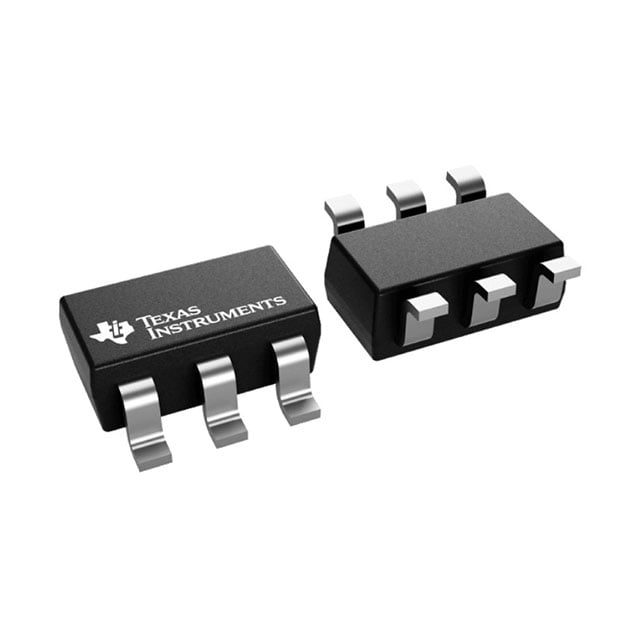

SN74LVC1G97DBVR TI Configurable Gate | SOT-23-6 | 1.65-5.5V, 3-State

Product Overview

The SN74LVC1G97DBVR from Texas Instruments is a versatile single configurable multiple-function gate designed for 1.65-V to 5.5-V VCC operation. This device combines the functionality of AND, OR, NAND, NOR, XOR, and inverter gates in a single package, allowing the user to select the logic function by connecting the inputs accordingly. The SN74LVC1G97DBVR is available in a small SOT-23-6 package, making it ideal for space-constrained applications. It features 3-state output, which can be disabled to achieve high-impedance state, enabling bus-oriented applications.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 5.5 V
• Configurable logic function: AND, OR, NAND, NOR, XOR, inverter
• 3-state output for bus-oriented applications
• Low power consumption: 10-µA max ICC
• High drive capability: ±32 mA at 3 V
• Schmitt-trigger inputs for noise immunity
• ESD protection exceeds JESD 22
• Small SOT-23-6 package for space-saving

Target Applications

• 5G base station control logic
• Automotive dashboard display interface
• Portable and battery-powered electronics
• Industrial sensor signal conditioning
• Consumer electronics: smartphones, tablets
• Data communication equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G97DBVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
