SN74LVC1G97YZPRB TI Configurable Multi-Function Gate | 0.9-5.5V, 1.6-3.6ns

Product Overview

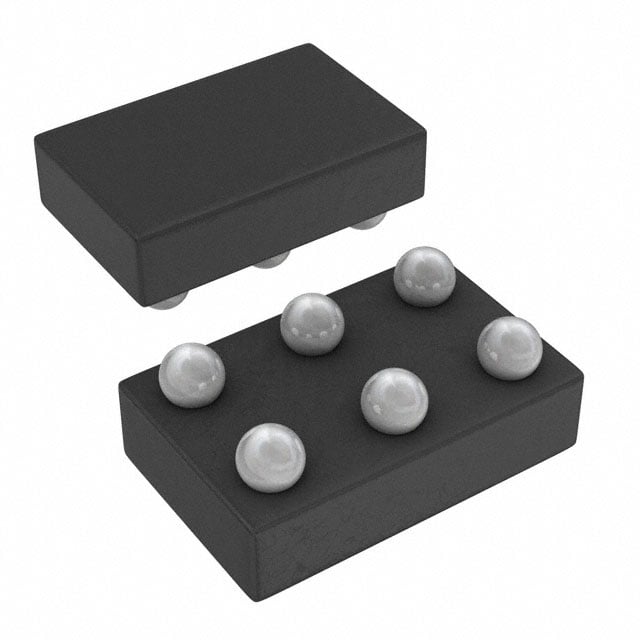

The SN74LVC1G97YZPRB is a configurable multi-function gate from Texas Instruments, designed for low-voltage, high-speed logic applications. It features a single gate with multiple logic functions (AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer) selectable via input states, making it highly versatile for space-constrained designs. Operating from 0.9V to 5.5V, it supports battery-powered and portable devices. The device is available in a tiny YZP (DSBGA) package, ideal for compact PCB layouts.

Detailed Technical Specifications

Key Features

• Configurable logic: AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer
• Wide supply voltage range: 0.9V to 5.5V
• High speed: tpd 1.6ns at 3.3V
• Low power consumption: ICC 10µA max
• Schmitt-trigger inputs for noise immunity
• ESD protection: 2kV HBM
• Small package: 0.8mm x 0.8mm DSBGA

Target Applications

• 5G base stations: Signal conditioning and logic conversion
• Automotive dashboard: Control logic for display and sensors
• Portable electronics: Battery management and power sequencing
• Industrial sensors: Interface logic for microcontrollers
• IoT devices: Low-power logic functions

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G97YZPRB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
