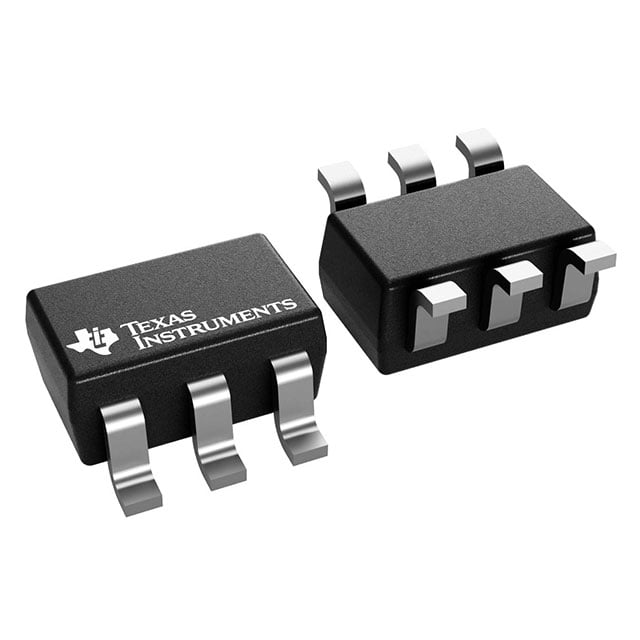

SN74LVC1GX04DCKT TI Crystal Oscillator Driver | SC-70-6 | 1.65V-5.5V, 150mA

Product Overview

The SN74LVC1GX04DCKT is a single-channel crystal oscillator driver from Texas Instruments, designed for low-voltage, low-power applications. It integrates an inverter with a feedback resistor and a series resistor to form a complete oscillator circuit with an external quartz crystal. The device operates over a wide supply voltage range of 1.65V to 5.5V, making it suitable for battery-powered and portable devices. Housed in a compact SC-70-6 package, it offers a space-saving solution for timing generation in various electronic systems.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 5.5V
• Integrated feedback resistor (typically 10 MΩ) and series resistor (typically 470 Ω)
• High output drive: ±24 mA at 3.3V
• Low power consumption: ICC = 10 μA maximum
• Schmitt-trigger input for noise immunity
• ESD protection: 2 kV HBM, 1 kV CDM
• RoHS compliant and lead-free

Target Applications

• 5G base station timing modules
• Automotive dashboard clock generation
• Portable medical devices (e.g., glucose meters)
• Industrial sensor interfaces
• Consumer electronics (smartphones, wearables)
• IoT edge nodes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1GX04DCKT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
