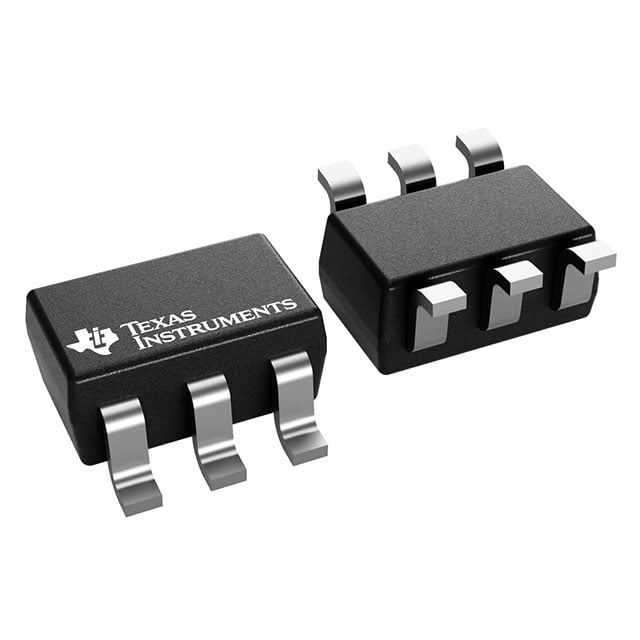

SN74LVC1T45DCKR TI Voltage Level Translator | SC-70-6 | 1.65V-5.5V, 1ch

Product Overview

The SN74LVC1T45DCKR is a single-bit, dual-supply non-inverting voltage level translator from Texas Instruments. It is designed to interface between different voltage domains, supporting VCCA from 1.65V to 5.5V and VCCB from 1.65V to 5.5V. The device features a direction control pin (DIR) that determines the data flow from A to B or B to A. Housed in a compact SC-70-6 package, it is ideal for space-constrained applications requiring bidirectional voltage translation.

Detailed Technical Specifications

Key Features

• Bidirectional voltage level translation with direction control
• Wide supply voltage range: 1.65V to 5.5V on both ports
• High data rate: up to 420 Mbps
• Low propagation delay: typical 3.5 ns
• Low power consumption: quiescent current max 10 µA
• ESD protection: 2 kV HBM
• Small SC-70-6 package for space-saving designs

Target Applications

• 5G base station control logic interfacing between 1.8V and 3.3V domains
• Automotive dashboard display communication (e.g., connecting MCU to display driver)
• Industrial sensor interfaces (e.g., translating 3.3V sensor output to 5V PLC input)
• Portable electronics like smartphones and tablets for I2C or SPI level shifting
• IoT modules bridging different voltage levels in mixed-voltage systems
