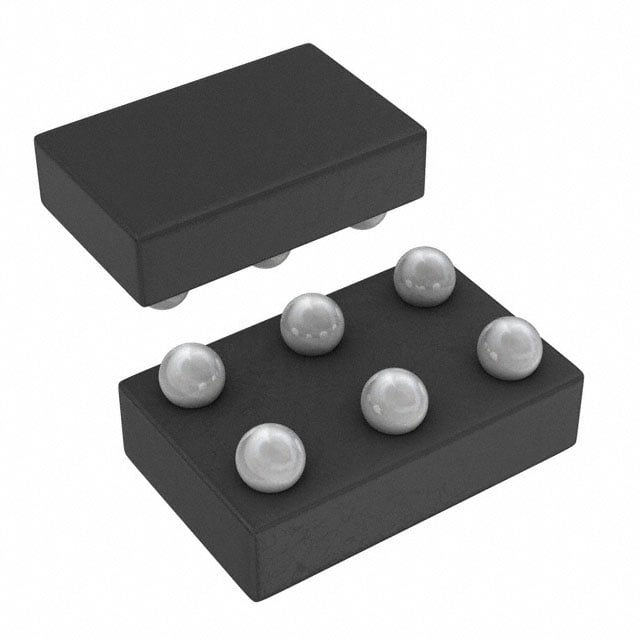

SN74LVC2G04YZPR TI Inverter | 6-DSBGA | 1.65V-5.5V, 5.2ns

Product Overview

The SN74LVC2G04YZPR from Texas Instruments is a dual inverter gate designed for 1.65-V to 5.5-V VCC operation. Housed in a compact 6-DSBGA package, it offers high-speed performance with a propagation delay of just 5.2 ns at 3.3 V. This device is part of the LVC family, known for low-voltage operation and compatibility with mixed-voltage systems.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5.2 ns at 3.3 V
• Low power consumption: 10 µA max ICC
• ±32 mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• ESD protection exceeds JESD 22
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• Ultra-small 6-DSBGA package saves board space

Target Applications

The SN74LVC2G04YZPR is ideal for a variety of applications including:

• 5G base stations: signal inversion in control logic
• Automotive dashboard: indicator logic and sensor interfaces
• Portable electronics: battery-powered devices requiring low power
• Industrial automation: PLC and motor control logic
• Consumer electronics: smart home hubs and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC2G04YZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
