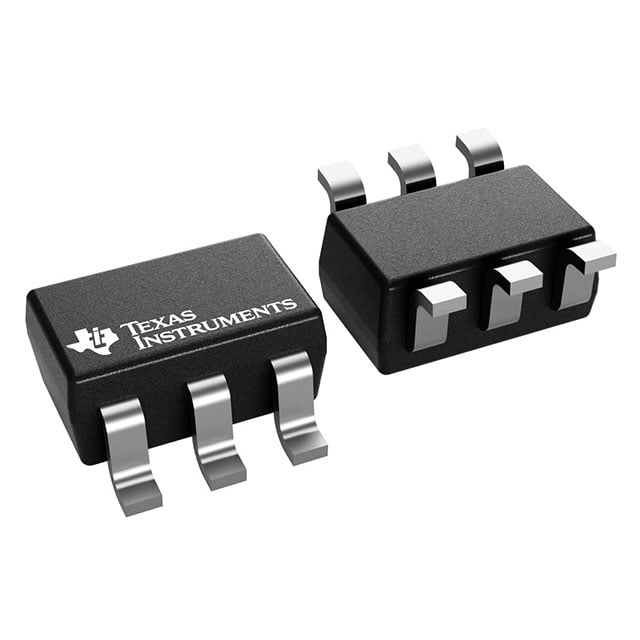

SN74LVC2G06DCKR TI Inverter | SC-70-6 | 5.5V, 2 Channels

Product Overview

The SN74LVC2G06DCKR from Texas Instruments is a dual inverter gate with open-drain outputs, designed for 1.65-V to 5.5-V VCC operation. This device performs the Boolean function Y = A in positive logic. The open-drain outputs require a pull-up resistor to achieve high-level output voltage. It is available in a small SC-70-6 package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• Open-drain outputs for wired-AND and level-shifting applications
• High drive capability: ±32 mA at 3.3 V
• Low power consumption: 10-μA max ICC
• Schmitt-trigger inputs for noise immunity
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Available in small SC-70-6 package (2 mm × 2.1 mm)

Target Applications

• 5G base station: Signal inversion and level translation in control logic
• Automotive dashboard: Open-drain output for driving indicator LEDs
• Industrial sensors: Interface between 3.3-V and 5-V logic domains
• Portable electronics: Low-power logic gating in battery-powered devices
• Data communication: Wired-AND configuration for interrupt lines
