SN74LVC2G132YZPR TI Logic Gates | 8-DSBGA | Dual 2-Input NAND, 1.65-5.5V

Product Overview

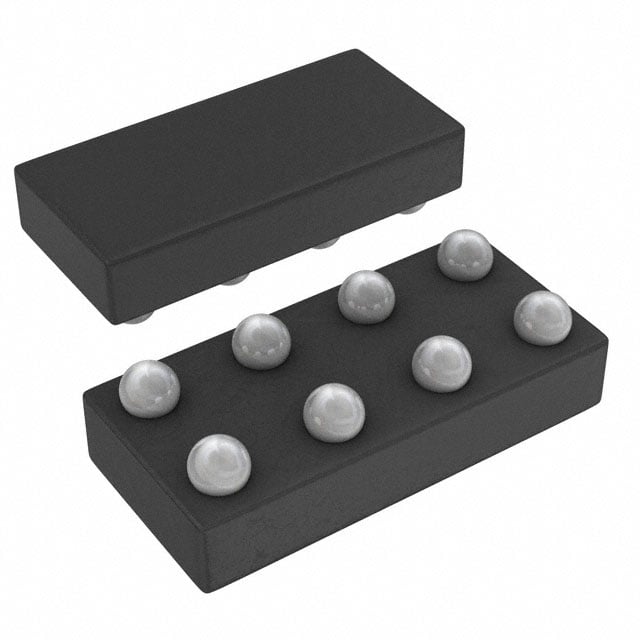

The SN74LVC2G132YZPR from Texas Instruments is a dual 2-input NAND gate with Schmitt-trigger inputs, designed for 1.65-V to 5.5-V VCC operation. This device provides the function Y = A ● B and is optimized for low-voltage applications, offering high noise immunity and stable output drive. Housed in a compact 8-DSBGA (0.35mm pitch) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Schmitt-trigger inputs for slow or noisy input signals
• Wide operating voltage range: 1.65 V to 5.5 V
• High drive strength: ±32 mA at 3.3 V
• Low propagation delay: 3.5 ns typical at 3.3 V
• Ultra-small package: 8-DSBGA (0.35mm pitch)
• Supports partial-power-down mode (Ioff)
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control logic
• Automotive dashboard display modules
• Portable medical devices (e.g., glucose meters)
• Industrial sensor interfaces
• IoT edge nodes

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC2G132YZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
