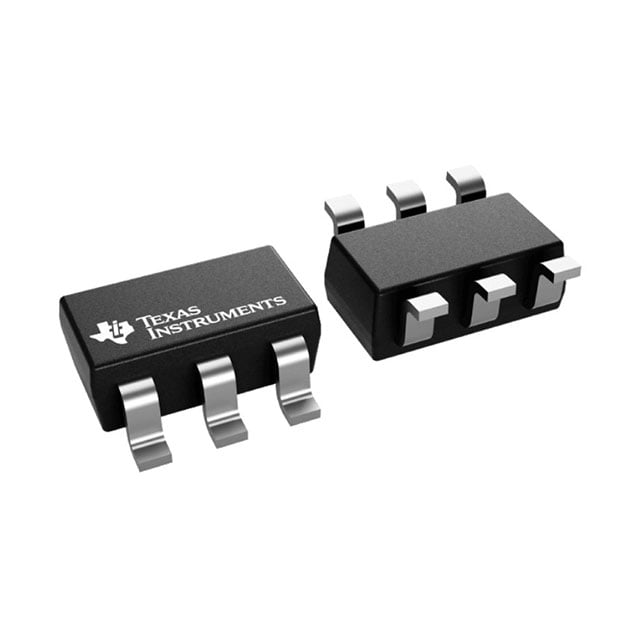

SN74LVC2G14DBVT TI Inverter | SOT-23-6 | Dual Schmitt-Trigger, 1.65V-5.5V

Product Overview

The SN74LVC2G14DBVT is a dual Schmitt-trigger inverter from Texas Instruments, designed for general-purpose logic applications. It features two independent inverters with Schmitt-trigger inputs, providing hysteresis for noise immunity and slow input signal conditioning. The device operates over a wide supply voltage range of 1.65V to 5.5V, making it suitable for battery-powered and low-voltage systems. Housed in a compact SOT-23-6 package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Dual Schmitt-trigger inverters with hysteresis for noise rejection
• Wide supply voltage range: 1.65V to 5.5V
• High output drive: ±24mA at 3.3V
• Low propagation delay: 4.3ns typical at 3.3V
• Inputs accept voltages up to 5.5V regardless of VCC
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100mA per JESD 78, Class II
• Pb-free, RoHS compliant

Target Applications

• 5G base station control logic: signal conditioning for power management ICs
• Automotive dashboard: debouncing switches and sensor interfaces
• Industrial automation: PLC input modules for noise filtering
• Portable electronics: battery-powered devices requiring low-voltage operation
• IoT gateways: level translation and signal shaping
