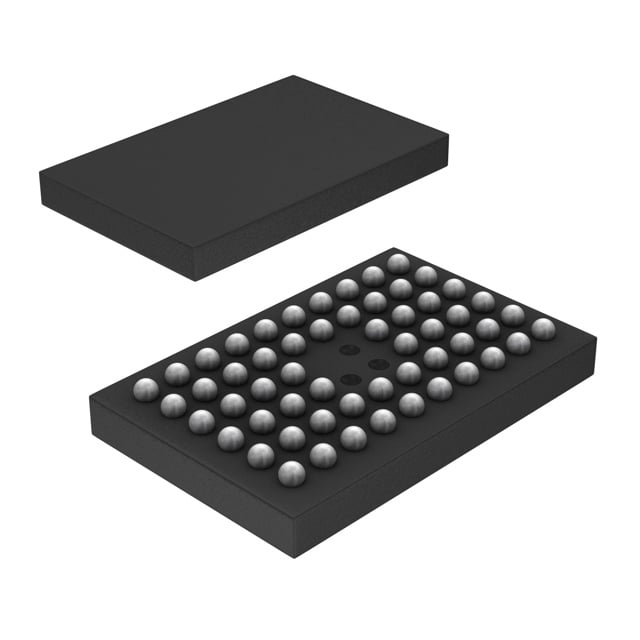

SN74LVCH16244AZQLR TI Buffer/Driver | 56-BGAMICROSTARJUNIOR (7X4.5) | 16-bit, 1.65-3.6V

Product Overview

The SN74LVCH16244AZQLR is a 16-bit buffer/driver from Texas Instruments, designed for 1.65-V to 3.6-V VCC operation. It features 3-state outputs and is ideal for driving bus lines or buffering memory address registers. The device is housed in a 56-ball BGA MICROSTAR JUNIOR package (7x4.5 mm), offering a compact solution for high-density applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 3.6 V
• 5.5-V tolerant inputs
• Supports partial power-down mode (Ioff)
• Bus hold on data inputs eliminates need for external pull-up/pull-down resistors
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control boards
• Automotive dashboard display interfaces
• Industrial PLC I/O modules
• Network switches and routers
• FPGA configuration and data buffering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCH16244AZQLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVCH16244AZQLR 是德州儀器（TI）推出的16位緩衝器/驅動器，工作電壓範圍為1.65 V至3.6 V。該器件具有三態輸出，適用於驅動總線或緩衝存儲器地址寄存器。產品採用56球BGA MICROSTAR JUNIOR封裝（7x4.5 mm），為高密度應用提供緊湊解決方案。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.65 V 至 3.6 V
• 5.5 V 容限輸入
• 支持部分斷電模式 (Ioff)
• 數據輸入具有總線保持功能，無需外部上拉/下拉電阻
• 閂鎖性能超過250 mA (符合JESD 17標準)
• 靜電放電保護符合JESD 22標準

典型應用場景

• 5G基站控制板
• 汽車儀表盤顯示接口
• 工業PLC I/O模塊
• 網絡交換機和路由器
• FPGA配置和數據緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVCH16244AZQLR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
