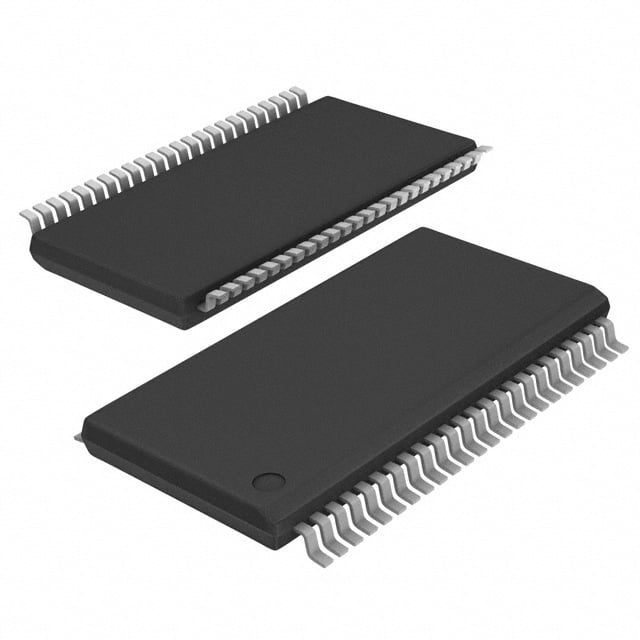

SN74LVCH16245ADGVR TI Bus Transceiver | 48-TVSOP | 16-Bit, 3.3V

Product Overview

The SN74LVCH16245ADGVR is a 16-bit (dual 8-bit) non-inverting bus transceiver from Texas Instruments, designed for 3.3-V VCC operation with 5-V tolerant I/Os. It features 3-state outputs and is ideal for bidirectional voltage-level translation and bus isolation in mixed-voltage systems. Housed in a compact 48-TVSOP package, it offers high-speed performance with low power consumption.

Detailed Technical Specifications

Key Features

• 16-bit bus transceiver with dual 8-bit channels
• Non-inverting data paths with 3-state outputs
• 5-V tolerant inputs for mixed-voltage systems
• Low power consumption: 10-μA max ICC
• Bus hold on data inputs eliminates need for external pull-up/pull-down resistors
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A)

Target Applications

• 5G base station control boards (e.g., interfacing FPGA with baseband processors)
• Automotive dashboard display modules (e.g., connecting MCU to LCD driver)
• Industrial PLC I/O modules (e.g., bus isolation between CPU and field devices)
• Networking equipment (e.g., router backplane data bus)
• Consumer electronics (e.g., smart TV main board level translation)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCH16245ADGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
