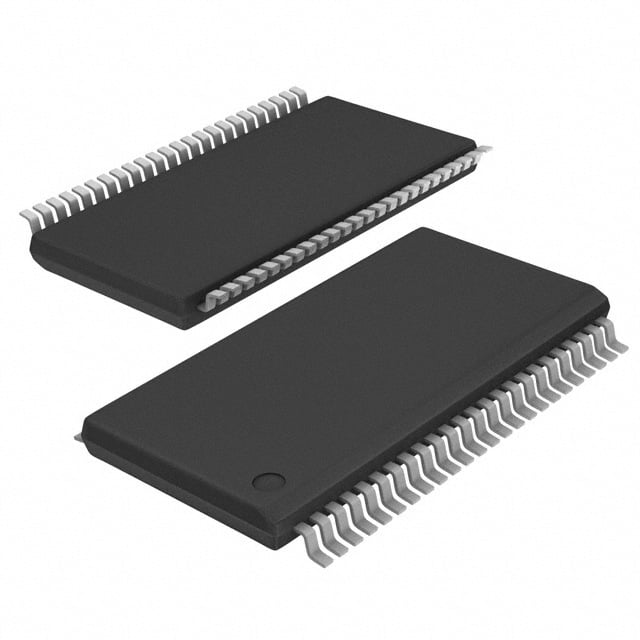

SN74LVTH16245ADGVR TI Bus Transceiver | 48-TVSOP | 3.3V, 16-Bit

Product Overview

The SN74LVTH16245ADGVR is a 16-bit (dual octal) non-inverting bus transceiver from Texas Instruments, designed for 3.3-V VCC operation with 5-V tolerant I/Os. It features 3-state outputs and is ideal for driving high-capacitance loads while maintaining low power consumption. Housed in a compact 48-TVSOP package, this device supports bidirectional data flow between two buses (A and B) with direction control via DIR and output enable via OE.

Detailed Technical Specifications

Key Features

• Bidirectional 16-bit bus transceiver with 3-state outputs
• 5-V tolerant inputs for mixed-voltage systems
• Low static power consumption (ICC = 5 µA max)
• Bus-hold circuitry eliminates need for external pull-up resistors
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Supports live insertion and withdrawal

Target Applications

• 5G base station control boards (e.g., data bus isolation)
• Automotive dashboard display modules (e.g., LVDS bridge)
• Industrial PLC I/O modules (e.g., signal level translation)
• Telecom switches and routers (e.g., backplane interface)
• Medical imaging equipment (e.g., FPGA configuration bus)
