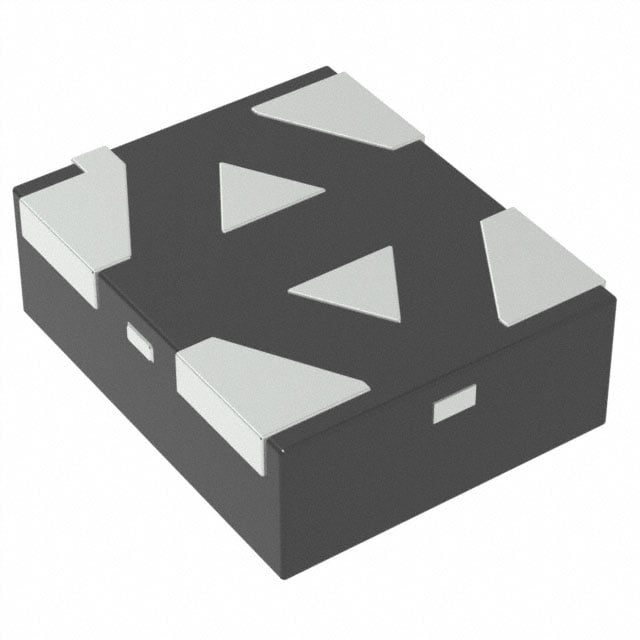

SN74LXCH1T45DTQR TI Voltage Level Translator | 6-X2SON (1x0.8) | 1.1V-5.5V, 500Mbps

Product Overview

The SN74LXCH1T45DTQR is a single-bit, dual-supply, non-inverting voltage level translator from Texas Instruments. It features a direction control pin (DIR) that allows bidirectional voltage translation between two independent power-supply voltages. The device supports a wide supply voltage range from 1.1V to 5.5V on both VCCA and VCCB, making it suitable for interfacing low-voltage ASICs/FPGAs with higher-voltage peripherals. Housed in a compact 6-X2SON (1mm x 0.8mm) package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation with direction control
• Wide supply range: 1.1V to 5.5V
• High data rate: up to 500 Mbps
• Low propagation delay: 1.5 ns typical
• Ultra-low quiescent current: 10 µA max
• Small footprint: 6-X2SON (1mm x 0.8mm)
• Partial power-down mode (Ioff) prevents backflow current
• ESD protection: 2 kV HBM

Target Applications

• 5G base station control logic level translation
• Automotive dashboard display interface (e.g., connecting 1.8V MCU to 3.3V display driver)
• Industrial sensor modules (e.g., 1.8V sensor to 3.3V PLC)
• Portable electronics (e.g., smartphone GPIO expansion)
• IoT edge devices (e.g., 1.8V SoC to 3.3V wireless module)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LXCH1T45DTQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
