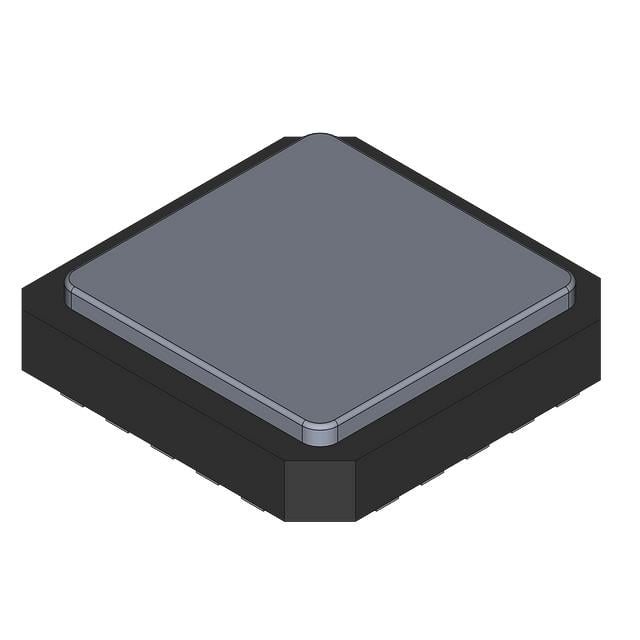

SNJ54HC153FK TI Logic IC | Dual 4-Line to 1-Line Data Selector/Multiplexer | 2V-6V, High-Speed

Product Overview

The SNJ54HC153FK is a high-speed dual 4-line to 1-line data selector/multiplexer from Texas Instruments, fabricated using advanced silicon-gate CMOS technology. It operates over a wide supply voltage range of 2V to 6V and features low power consumption, high noise immunity, and compatibility with TTL logic levels. The device is designed for multiplexing data from two 4-bit sources onto a single output line, with individual strobe inputs for each multiplexer section. Housed in a ceramic flat package (FK), it is suitable for military and high-reliability applications.

Detailed Technical Specifications

Key Features

• Dual 4-line to 1-line multiplexer with common select inputs
• Individual strobe (enable) for each multiplexer
• Wide operating voltage range: 2V to 6V
• High noise immunity: typical VNIH = VNIL = 28% of VCC
• Low power consumption: 20µA max ICC
• TTL-compatible inputs and outputs
• High-speed: propagation delay 14ns typ at 5V
• Military temperature range: -55°C to +125°C
• Ceramic flat package (FK) for high reliability

Target Applications

The SNJ54HC153FK is ideal for data routing and selection in high-reliability systems. Specific applications include:

• 5G base station control logic for signal path selection
• Avionics display systems for multiplexing sensor data
• Military communication equipment for data bus selection
• Industrial automation for programmable logic controllers
• Medical imaging systems for data acquisition multiplexing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54HC153FK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
