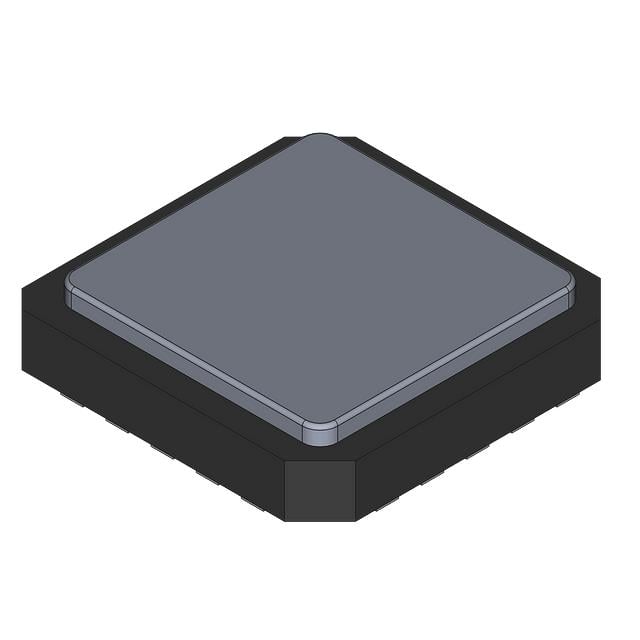

SNJ54HC4066FK TI Analog Switch IC | Quad SPST | 2V-6V, 50Ω

Product Overview

The SNJ54HC4066FK is a high-speed quad bilateral analog switch from Texas Instruments, designed for precision signal routing in demanding environments. It features four independent SPST (Single-Pole Single-Throw) switches with low on-state resistance (typically 50Ω) and wide operating voltage range (2V to 6V). Housed in a ceramic LCCC package, this device is qualified for military and aerospace applications, offering enhanced reliability over extended temperature ranges (-55°C to +125°C). The SNJ54HC4066FK provides break-before-make switching action, minimizing signal distortion and ensuring clean transitions. Its low power consumption and high noise immunity make it ideal for battery-powered and industrial systems.

Detailed Technical Specifications

Key Features

• Quad SPST switches with independent control
• Low on-state resistance (50Ω typical)
• Wide operating voltage range (2V to 6V)
• High switching speed (up to 50 MHz)
• Break-before-make switching action
• Low power consumption (10 μW typical)
• High noise immunity (VNH = 0.7 VCC)
• Military temperature range (-55°C to +125°C)
• Ceramic LCCC package for harsh environments

Target Applications

• 5G base station signal routing (e.g., antenna switching matrices)
• Automotive dashboard display multiplexing
• Industrial process control (e.g., PLC analog input selection)
• Medical instrumentation (e.g., patient monitoring signal switching)
• Test and measurement equipment (e.g., automated test equipment)
• Audio/video signal switching (e.g., professional audio mixers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SNJ54HC4066FK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
