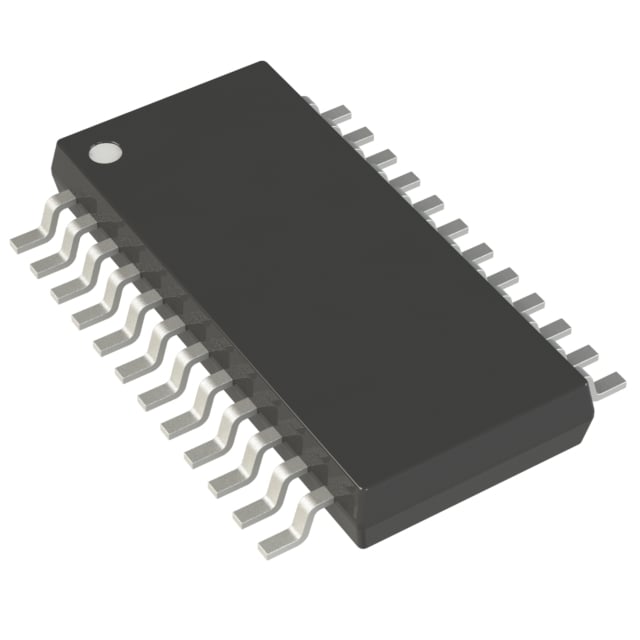

TCA9535DBT TI I2C I/O Expander | 24-SSOP | 16-Bit, 2.3V-5.5V

Product Overview

The TCA9535DBT is a 16-bit I/O expander from Texas Instruments (TI) designed for I2C bus applications. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock (SCL) and serial data (SDA)). The device features a 16-bit configuration register, input/output port registers, and polarity inversion registers. The TCA9535DBT operates from a 2.3V to 5.5V supply and supports up to 400 kHz I2C clock frequency. It is available in a compact 24-SSOP package, making it suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional I/O ports
• I2C interface with up to 400 kHz clock frequency
• Wide supply voltage range: 2.3V to 5.5V
• Low standby current consumption
• Polarity inversion register for each port
• Open-drain active-low interrupt output
• Configurable I2C address via three address pins (up to 8 devices)
• Industrial temperature range: -40°C to +85°C
• Package: 24-SSOP (shrink small outline package)

Target Applications

• 5G base station control and monitoring (e.g., fan control, status LED)
• Automotive dashboard and infotainment systems (e.g., button matrix, backlight control)
• Industrial automation (e.g., PLC I/O expansion, sensor interface)
• Consumer electronics (e.g., smart home hubs, gaming consoles)
• Medical devices (e.g., patient monitoring, diagnostic equipment)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCA9535DBT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
