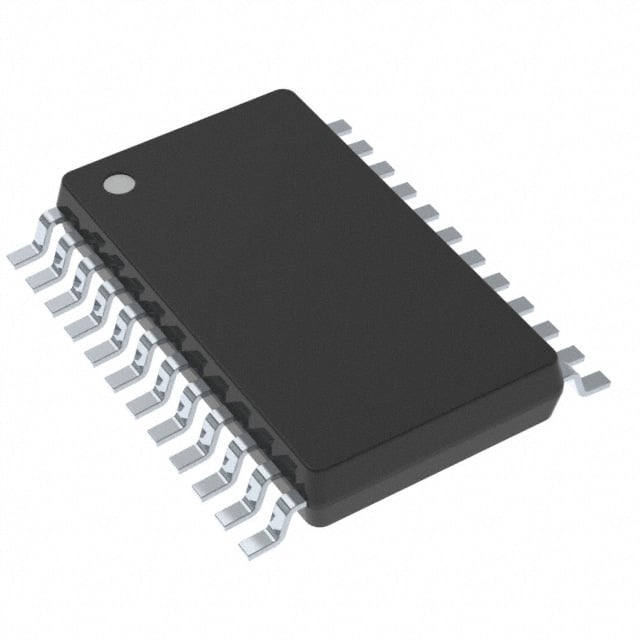

TCA9539AQPWRQ1 TI I2C GPIO Expander | 24-TSSOP | 16-bit, 2.3-5.5V

Product Overview

The TCA9539AQPWRQ1 from Texas Instruments is a 16-bit I2C-bus and SMBus I/O expander designed for automotive applications. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock (SCL) and serial data (SDA)). The device features an interrupt output (INT) that can be connected to the microcontroller's interrupt input, alerting the system of input changes without polling. Three hardware address pins (A0, A1, A2) allow up to eight devices on the same bus, expanding I/O capability up to 128 bits. The TCA9539AQPWRQ1 is qualified to AEC-Q100 for automotive applications and operates over a wide temperature range of -40°C to +125°C.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional I/O ports with I2C interface
• Three hardware address pins allow up to 8 devices on bus
• Open-drain active-low interrupt output
• Input/output configuration register
• Polarity inversion register
• Internal power-on reset
• No glitch on power-up
• Low standby current consumption
• Schmitt-trigger action allows slow input transition
• 5 V tolerant I/Os
• Automotive grade: AEC-Q100

Target Applications

• Automotive body control modules (e.g., door modules, seat control)
• Infotainment systems (e.g., dashboard displays, steering wheel controls)
• Advanced driver-assistance systems (ADAS) sensor interfaces
• 5G base station control and monitoring
• Industrial automation (e.g., PLC I/O expansion)
• Server and telecom equipment (e.g., fan control, status LEDs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCA9539AQPWRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
