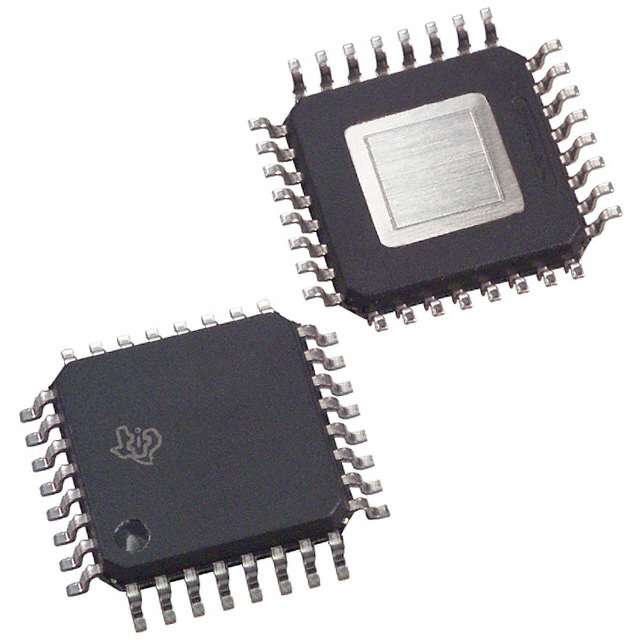

THS6132VFP TI Differential ADC Driver | 32-HLQFP (7x7) | 2.9GHz BW, 6500V/µs

Product Overview

The THS6132VFP from Texas Instruments is a high-speed, fully differential amplifier designed for driving high-performance analog-to-digital converters (ADCs). With a bandwidth of 2.9 GHz and an ultra-high slew rate of 6500 V/µs, it is ideal for demanding applications such as communications infrastructure, test and measurement equipment, and radar systems. The device operates from a single 5V supply and features a wide output voltage swing, low harmonic distortion, and excellent common-mode rejection. Housed in a compact 32-pin HLQFP (7x7 mm) package, the THS6132VFP enables high-density designs while maintaining superior signal integrity.

Detailed Technical Specifications

Key Features

• Ultra-wide bandwidth of 2.9 GHz for high-speed signal processing
• High slew rate of 6500 V/µs ensures fast settling and low distortion
• Low harmonic distortion: HD2 -75 dBc, HD3 -80 dBc at 100 MHz
• Adjustable output common-mode voltage for optimal ADC interface
• Single 5V supply operation simplifies power design
• Small 32-HLQFP package saves board space
• Excellent common-mode rejection ratio (CMRR) for noise immunity

Target Applications

• 5G base station transceivers (e.g., driving ADCs in massive MIMO systems)
• Automotive radar modules (e.g., 77 GHz radar signal conditioning)
• High-speed data acquisition systems (e.g., oscilloscope front-ends)
• Software-defined radio (SDR) platforms
• Medical imaging equipment (e.g., ultrasound beamforming)
• Test and measurement instruments (e.g., spectrum analyzers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for THS6132VFP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

THS6132VFP 是德州儀器（TI）推出的一款高速全差分放大器，專為驅動高性能模數轉換器（ADC）而設計。其帶寬高達 2.9 GHz，壓擺率達 6500 V/µs，非常適合通信基礎設施、測試測量設備和雷達系統等要求嚴苛的應用。該器件採用單一 5V 電源供電，具有寬輸出電壓擺幅、低諧波失真和出色的共模抑制能力。THS6132VFP 採用緊湊的 32 引腳 HLQFP（7x7 mm）封裝，可在保持卓越信號完整性的同時實現高密度設計。

詳細技術參數

核心特性

• 2.9 GHz 超寬帶寬，適用於高速信號處理
• 6500 V/µs 高壓擺率，確保快速建立和低失真
• 低諧波失真：100 MHz 時 HD2 -75 dBc，HD3 -80 dBc
• 可調輸出共模電壓，優化 ADC 接口
• 單一 5V 電源供電，簡化電源設計
• 小型 32-HLQFP 封裝，節省電路板空間
• 出色的共模抑制比（CMRR），抗噪能力強

典型應用場景

• 5G 基站收發器（例如驅動大規模 MIMO 系統中的 ADC）
• 車載雷達模塊（例如 77 GHz 雷達信號調理）
• 高速數據採集系統（例如示波器前端）
• 軟件定義無線電（SDR）平台
• 醫療成像設備（例如超聲波束形成）
• 測試與測量儀器（例如頻譜分析儀）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 THS6132VFP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
