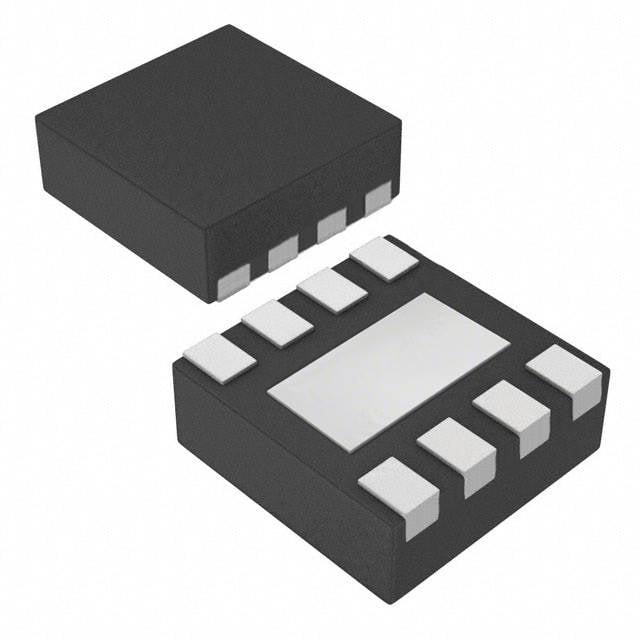

TL4242DRJR TI LED Driver | 8-SON(4x4) | 40V, 500mA, Linear

Product Overview

The TL4242DRJR from Texas Instruments is a linear, constant-current LED driver designed for high-brightness LED applications. It operates from a supply voltage up to 40V and delivers a regulated output current of up to 500mA. The device features a low dropout voltage and excellent output current accuracy, making it ideal for automotive and industrial lighting systems. Housed in a compact 8-pin SON (4x4mm) package, it offers a space-saving solution for driving single or multiple LEDs in series.

Detailed Technical Specifications

Key Features

• Linear constant-current regulation with ±3% accuracy
• Low dropout voltage minimizes power dissipation
• Wide input voltage range supports automotive and industrial supplies
• Built-in thermal shutdown and output current limit
• Small 8-SON package for space-constrained designs

Target Applications

• Automotive exterior lighting: Daytime running lights (DRL), tail lights, turn signals
• Industrial LED lighting: Panel indicators, machine vision lighting
• 5G base station status indicators
• Dashboard backlighting in automotive clusters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TL4242DRJR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TL4242DRJR 是德州儀器（TI）推出的一款線性恆流 LED 驅動器，專為高亮度 LED 應用設計。它可在高達 40V 的電源電壓下工作，並提供高達 500mA 的調節輸出電流。該器件具有低壓差電壓和出色的輸出電流精度，非常適合汽車和工業照明系統。採用緊湊的 8 引腳 SON（4x4mm）封裝，為驅動單個或多個串聯 LED 提供了節省空間的解決方案。

詳細技術參數

核心特性

• 線性恆流調節，精度 ±3%
• 低壓差電壓，降低功耗
• 寬輸入電壓範圍，支持汽車和工業電源
• 內置熱關斷和輸出電流限制
• 小型 8-SON 封裝，適合空間受限設計

典型應用場景

• 汽車外部照明：日行燈、尾燈、轉向燈
• 工業 LED 照明：面板指示燈、機器視覺照明
• 5G 基站狀態指示燈
• 汽車儀表盤背光

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TL4242DRJR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
