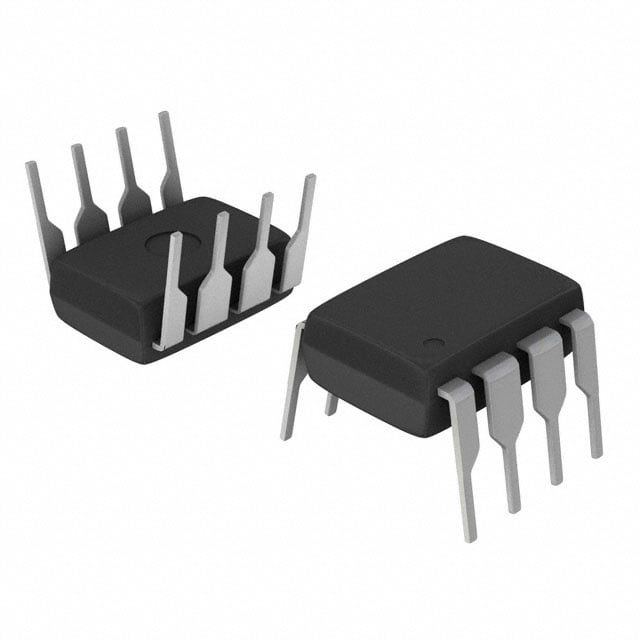

TL7702AIP TI Supervisory Circuit | 8-PDIP | 2.53V Threshold, Active-Low Reset

Product Overview

The TL7702AIP from Texas Instruments is a monolithic integrated circuit designed as a supply voltage supervisor for microprocessors and digital systems. It provides a reset signal to the system when the supply voltage drops below a preset threshold, ensuring reliable operation during power-up, power-down, and brownout conditions. Housed in an 8-pin PDIP package, this device offers a precise 2.53V threshold voltage with a typical reset delay of 200ms. Its low supply current of 1.1mA makes it suitable for battery-powered applications.

Detailed Technical Specifications

Key Features

• Precision 2.53V threshold for 5V systems
• Active-low reset output with open-drain configuration
• Built-in hysteresis for noise immunity
• Low supply current of 1.1mA
• Wide supply voltage range: 3.5V to 18V
• 200ms reset delay ensures stable system startup
• Available in 8-pin PDIP package for easy prototyping

Target Applications

• 5G base station power management modules
• Automotive dashboard controllers
• Industrial PLC systems
• Portable medical devices like glucose monitors
• Smart home gateways

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TL7702AIP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
