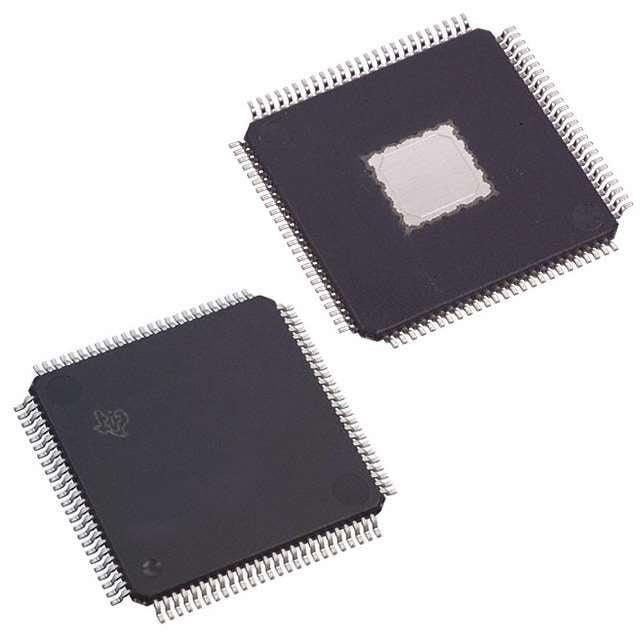

TLC5911PZP TI LED Driver | 100-HTQFP (14x14) | 16-Ch, Constant Current

Product Overview

The TLC5911PZP is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a 16-bit shift register, data latches, and constant-current output stages. Each output channel can be programmed to sink up to 120 mA, with current accuracy maintained across channels and devices. The device operates from a 3.0V to 5.5V supply and features a thermal shutdown for protection. Packaged in a 100-pin HTQFP (14x14 mm), it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Programmable output current via external resistor
• 3-wire serial interface (SDI, CLK, LE)
• Output current accuracy: ±1% channel-to-channel, ±3% device-to-device
• Thermal shutdown protection
• Output enable (OE) pin for PWM dimming
• Wide output voltage range up to 17V
• Lead-free and RoHS compliant

Target Applications

• LED video displays (e.g., indoor/outdoor signage, stadium screens)
• Automotive lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial control panels (e.g., PLC indicator lights)
• 5G base station status indicators
• General-purpose constant-current LED driving

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5911PZP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
