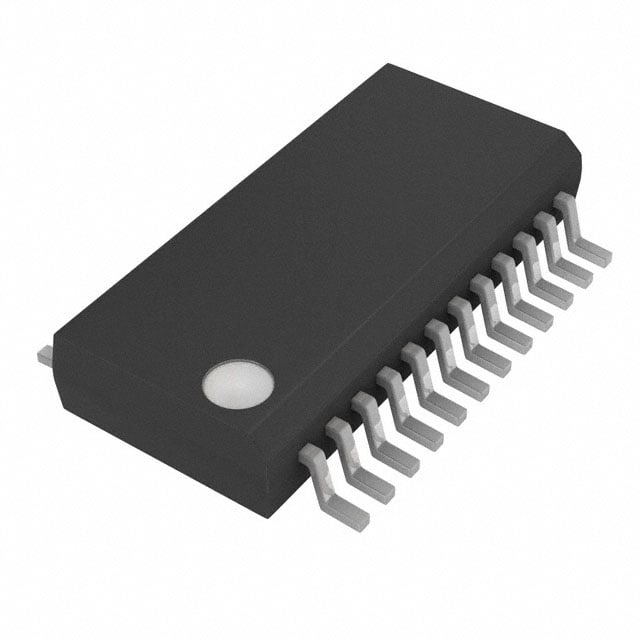

TLC5925IDBQR TI LED Driver | 24-SSOP | 16-Channel, Constant Current

Product Overview

The TLC5925IDBQR is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a shift register, data latch, and constant-current output stages, enabling precise control of LED brightness and color. The device operates from a 3V to 5.5V supply and provides adjustable output current up to 120 mA per channel. Its 24-pin SSOP package offers a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 5-bit dot correction and 7-bit global brightness control
• Adjustable output current via external resistor
• 30 MHz data transfer rate for high-speed updates
• Built-in thermal shutdown and open/short LED detection
• Low power consumption with 1 µA typical shutdown current
• Wide output voltage compliance up to 17 V

Target Applications

• LED video displays (e.g., indoor/outdoor signage, stadium screens)
• Automotive lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial control panels (e.g., PLC indicators, HMI backlighting)
• 5G base station status indicators
• Consumer electronics (e.g., smart home displays, gaming peripherals)
