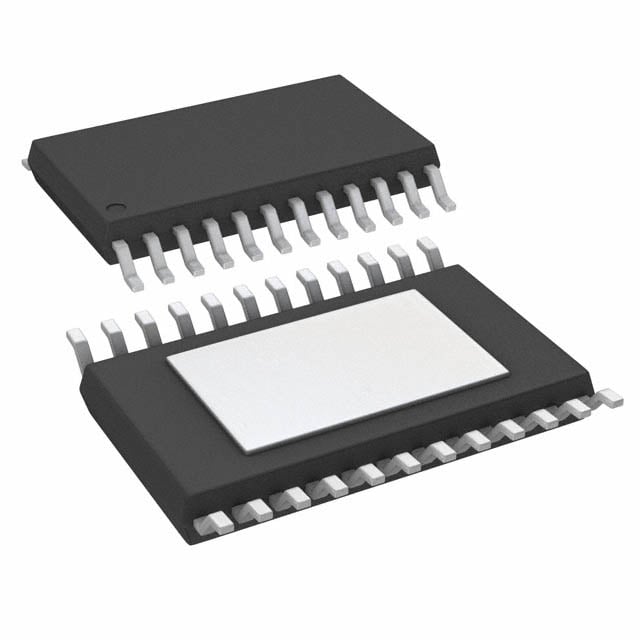

TLC5948APWPR TI LED Driver | 24-HTSSOP | 16-Channel, Constant Current

Product Overview

The TLC5948APWPR is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a shift register, data latch, and current control circuitry, enabling precise LED brightness control with minimal external components. The device operates from a 3V to 5.5V supply and provides adjustable output current up to 120 mA per channel via an external resistor. Its 24-pin HTSSOP package offers a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Adjustable output current via external resistor
• 3-wire serial interface (SDI, CLK, LE)
• Output current accuracy: ±1%
• Thermal shutdown protection
• Output voltage up to 17 V
• Low power consumption

Target Applications

• LED display panels for 5G base station status indicators
• Automotive dashboard backlighting
• Industrial control panel indicators
• Signage and message boards
• General-purpose LED driving
